Overview
This production line is applied for filling syrup,oral liquid,
tincture,lotion,agrochemical, solvent etc. in the field of
pharmaceutical, foodstuff,agrochemical,chemical,fully conforming to
GMP regulation. Full complete line accomplish automatic
unscrambling, air rinsing,piston pump filling, screw
capping,induction sealing,labeling. Whole line covers an small
area, running stably,and economic and practical.

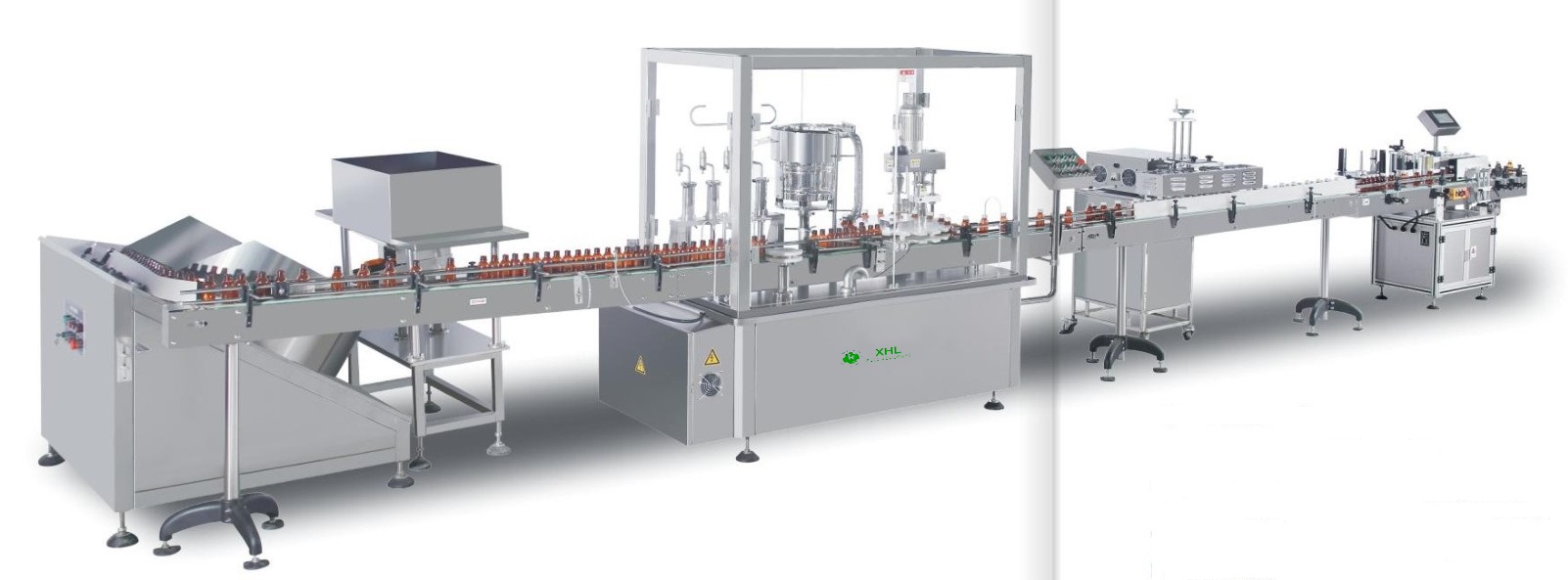

Filling Line Consists Of:
-LP200 Automatic Bottle Unscrambler(or GP620 Turntable)
-QX-4 Plastic Bottle Air Rinser
-YG4/1 4 Pump Filling and Capping Machine
-FL Induciton Sealing Machine
Features
-Adopt automatic unscramble bottle,instead of handworking,saving
labor.
-Rinsing bottle by purified air, ensure the cleanliness,and with
the Electrostatic eliminating high ion wind device.
-Adopt volumetric piston pump to fill high precision,fit to light
liquid and medium viscosity product, pump is easily taken
down,convenient to clean and sterilize.
-The sealing of piston pump is made of different kinds of
material,such as silicone,Teflon etc, optional ceramic pump in
special use.
-PLC control system,frequency conversion adjustable speed.
-Filling amount of all pumps are major adjusted in one time, minor
adjustment for each pump.Easy and quick operate.
-Filling system has the function of shrinking, no drop leakage.Top
bottom fill,mostly reduce foam.
-Adjustable system to fit to various kinds of container without
interchange part.
-The whole machine is designed and produced accordance with GMP
regulation.
Main Technical Parameters
| Alternative filling volume: | 10-30ml,30-60ml,50-120ml,100-250ml,250-500ml | Suit to bottle shape: | round, flat,irregular |
| Filling head: | 4 nozzles | Air rinsing head: | 4 nozzles |
| Capping heads: | Single head | Filling precision: | ≤±1% |
| Qualified capping: | ≥99.8% | Production capacity: | 2500-3000BPH |
| Power supply: | 220/380V 50Hz | Power consumption: | ≤6Kw |
| Compressed air required | 0.4-0.6MPa 15-25m3/h
|
Product Images
About us
-Listed company founded in 2003(WINLONG GROUP CORPORATE)
-17 years’ manufacturing experience in the aseptic filling
production line.
-Exclusive manufacturing factory of 20,000 square meters
(Changzhou, Jiangsu)
-More than 100 famous enterprise business partners across China.
-Expanded global business network
-Proven design, efficient and reliabile products.
-Customized design to meet the customer’s demand.
Our Services and Warranty
1.We can customize the machine as customer required.
2.Available for OEM/ODM service.
3.Offer living broadcast or video support.
4.To Door installation and training service.
5.Offer filling line solution with customer requirement.
6.Customer’s design are welcomed.
7.Competitive price with on-time delivery.
8.Main spare parts one year warranty ( personal damaged except ).
We can customize with your packaging materials, production capacity
and demands.
We will provide you with associated design solutions and case
videos.
