Overview

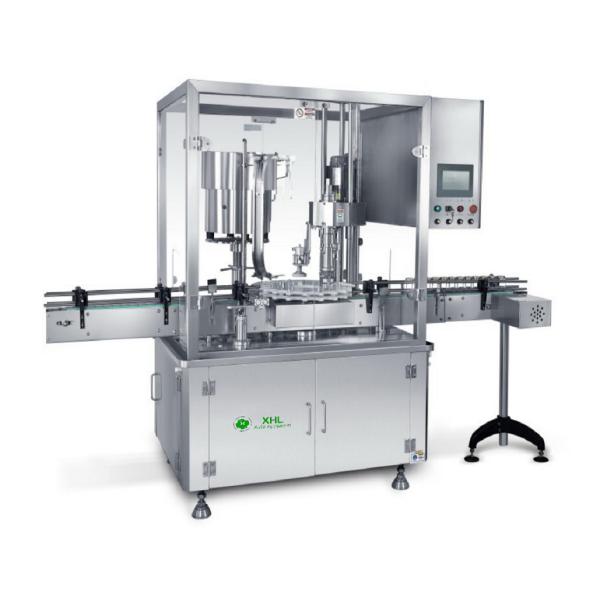

The XG round disc positioning type cap turning (capping) machine is
an economical device. The machine is designed to use the round disc
for positioning the bottles for intermittent movement. The
positioned bottles are subject to cap turning (capping) by the cap
turning (capping) heads. The machine is highly practical and is an
ideal piece of equipment for cap turning of bottles in such
industries as medicine, food, chemical industry, pesticide, etc.
Note:The machine can also be used for pressing aluminum caps,
anti-theft caps, screw caps, etc.
Features
-Automatic cap unscrambling with high capping rate and cap turning
rate.
-Positioning by the round disc, easy change of specifications and
wide adjustment range.
-Smooth bottle feeding and discharging, variable frequency speed
control, easy to be connected for linked production.
-The tightness of the air gripper type cap turning head can be
adjusted without damaging the bottle and cap.
-The capping head adopts flexible design with easy adjustment, and
can also be designed to be used for pull caps.
-Continuous operation to complete automatic production, saving time
and improving efficiency.
-The cap turning machine can be equipped with a servo motor, and
the torque is adjustable.
-It can be equipped with the cap storage and lifting mechanism.
-It can be equipped with the mechanism for identifying reverse caps
and eliminating nonconforming products.
-Replacement of parts is simple and easy to operate.
-The whole machine is designed according to GMP requirements.
Main Technical Parameters
| Model: | XHL-XG1 | Applicable bottle specifications: | 20-500ml |
| Number of cap turning and pressing heads: | Single-head | Optional screw cap size: | F12-70mm |
| Optional ROPP Aluminum cap size: | F16-36mm | Cap turning and pressing speed(bottle F40mm): | 2400-3000BPH |
| Cap turning and pressing pass rate: | ≥99.9% | Power supply: | 220/380V 50HZ |
| Power: | 0.8KW | Single machine noise: | ≤70dB |
| Net weight: | 600 KG | Outline dimensions: | 2000*1000*1500(mm) |
