Product Description
Overview
The production line is suitable for production of sterile powders
of high output.

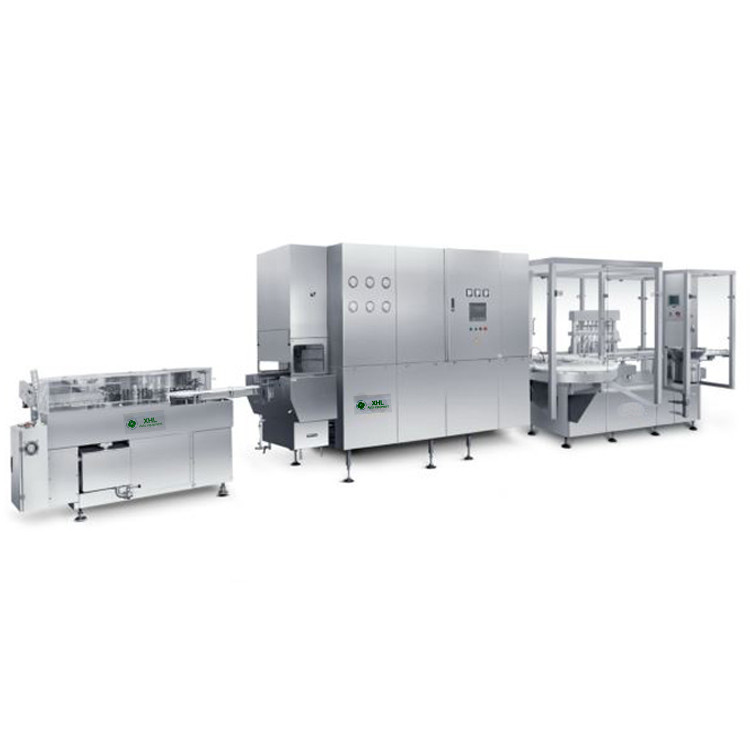

The production line is composed of QCLW series ultrasonic bottle
washing machine, QHX series hot air circulation tunnel oven,KBG
liquid filling machine and KGL series capping machine. The unit has

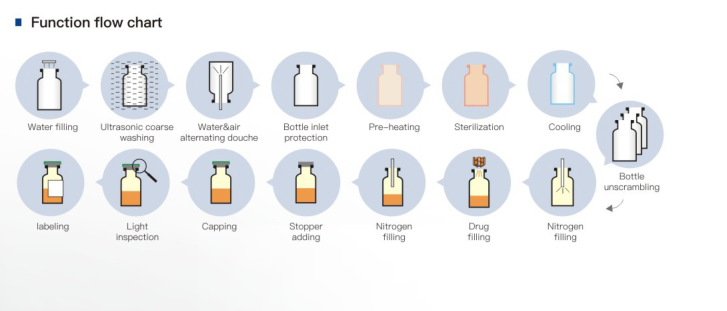

the functions of washing, drying and sterilizing, fillingand
stoppling (half stoppling and full stoppling), capping and sealing.
It is mainly suitable for production of lyophilized
(waterinjection) aseptic injection in pharmaceutical enterprises.
By adding the RABS system, it can meet Class A (ISO5
level)requirements for aseptic preparation environment, and the
unit meets the new version GMP requirements.
Main Technical Parameters
| Product model | QCLW40 | QCLW60 | QCLW80 | QCLW100 | QCLW120 |
| Applicable bottle | 2-30ml |
| Number of filling heads | 4 heads | 6 | 10 | 12 | 20 |
| Production capacity(2ml) | 120 | 180 | 300 | 400 | 500 |
| Bottle washing pass rate | ≥99.9% |
| Bottle washing breakage rate | ≤0.1% |
| Sterilization temperature | 300-350 |
| Exhaust air volume | 3000 | 3000 | 4100 | 7500 | 8000-10000 |
| Filling accuracy | ≤±0.5% |
| Stoppling pass rate | ≥99.9% |
| Capping pass rate | ≥99.9% |
| Air laminar flow cleanliness | 100% |
| Vacuum pumping speed | 10 | 30 | 60 | 60 | 100 |
| Power supply | 380V 50Hz |
| Total weight | 6300 | 6300 | 7900 | 9400 | 10900 |
Product Image
Our Partner
Our Warehouse
About us
-Listed company founded in 2003(WINLONG GROUP CORPORATE)
-17 years’ manufacturing experience in the aseptic filling
production line.
-Exclusive manufacturing factory of 20,000 square meters
(Changzhou, Jiangsu)
-More than 100 famous enterprise business partners across China.
-Expanded global business network
-Proven design, efficient and reliabile products.
-Customized design to meet the customer’s demand.
Our service and warrantee
1.We can customize the machine as customer requried ;
2.Available for OEM/ODM service ;
3.Offer living broadcast or video support;
4.To Door installation and training service ;
5. Offer filling line solution with customer required
6.Customer’s design are welcomed.
We can customize with your packaging materials, production capacity
and demands. We will provide you with associated design solutions
and case videos.
