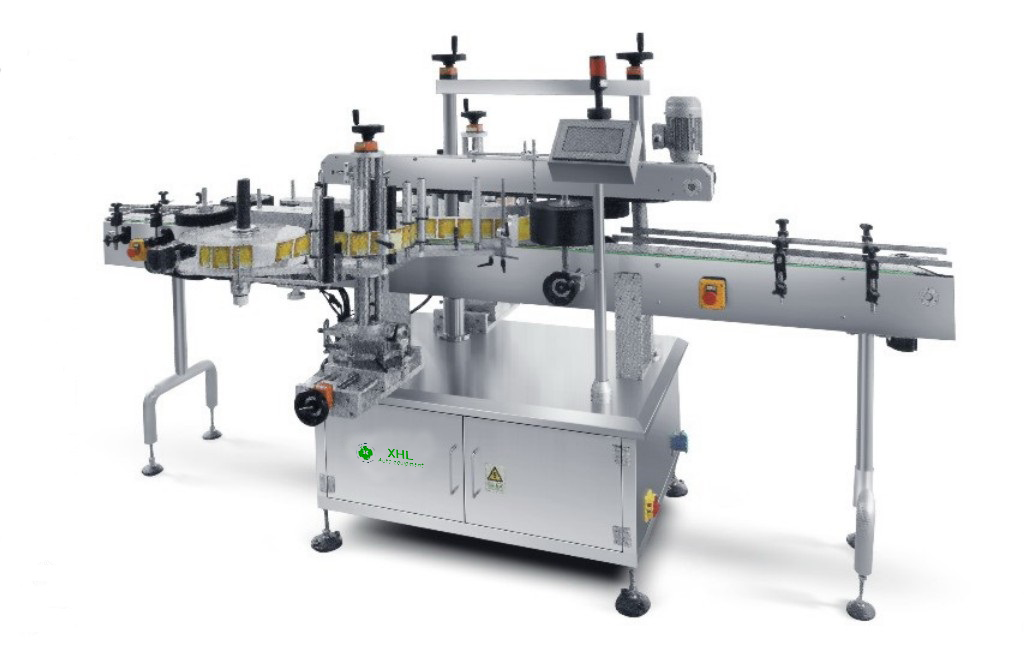

9000BPH Automatic Adhesive Side Labeling Machine With Photoelectron
Control(LTP)
Overview
This series machine is applied to stick side of flat & square in
the field of pharmaceutical,pesticide, chemical,foodstuff etc. It
is able to quto separating bottle, feeding label belt, separating
label, sticking and auto print codes. It is equipped with large
torque step motor of servo motor and imported photoelectron
controlled PLC to ensure the accuracy, stability, reliability and
high efficiency.
Main Performance Features
-The whole machine adopts imported servo control system to make it
run stably at a high speed. Advanced user-friendly touch type
man-machine interface, simple and visual operation, complete
functions, with rich online help function.
-The imported electrical components of world-renowned brands are
used to ensure stability and reliability of the whole machine.
-The universal bottle distribution device and double-side chain
aligning device ensure the centering of materials. The special
elastic ejecting device ensures material stability. There is no
need to change the parts for bottles of any diameter and the
positioning is quickly adjusted.
-One machine can complete automatic side labeling of three types of
bottles (round bottles, flat bottles, square bottles).
-Automatic synchronous tracking of conveying, aligning, pressing
and labeling speed, making adjustments quicker and easier.
-Automatic sensor detection, provided with such functions as no
labeling in case of no material, automatic stopping or alarming in
case of no label, label missing or broken label, so as to avoid
missed labeling and waste.
-Optional configuration (ribbon coding) online printing of
production date and lot number, reducing bottle packaging
procedures and improving production efficiency.
-It adopts special label smoothing device, ensuring flat, firm and
wrinkle-free labeling and greatly improving the packaging quality.
-The front or rear section can be connected to the production line,
and it can also be equipped with a material receiving rotary table
to facilitate the collection, arranging and packaging of finished
products.
-Operation process:product placing (can be connected to the
production line)→ product conveying (automatic realization of
equipment) → product spacing→ product inspection→ labeling →
collection of labeled products.
Main Technical Parameters
| Applied range | (flat/square bottles)width:30-90mmheight≤300mm | Production capacity | MAX.150 Bottles/min |
| Tolerance of Labeling Quantity | ±1.0mm | Label sizes: | ID of label reel 76mm,Max OD of label reel380mm Width of label 20-140mm, Length of label 30-300mm |
| Power supply | 220V 50Hz | Power consumption | 2.1kw |
| Dimension | 3000mm*1400mm*1500mm | Weight | 700kg |
,
About us
-Listed company founded in 2003(WINLONG GROUP CORPORATE)
-17 years’ manufacturing experience in the aseptic filling
production line.
-Exclusive manufacturing factory of 20,000 square meters
(Changzhou, Jiangsu)
-More than 100 famous enterprise business partners across China.
-Expanded global business network
-Proven design, efficient and reliabile products.
-Customized design to meet the customer’s demand.
Our Services and Warranty
1.We can customize the machine as customer required.
2.Available for OEM/ODM service.
3.Offer living broadcast or video support.
4.To Door installation and training service.
5.Offer filling line solution with customer requirement.
6.Customer’s design are welcomed.
7.Competitive price with on-time delivery.
8.Main spare parts one year warranty ( personal damaged except ).
We can customize with your packaging materials, production capacity
and demands.
We will provide you with associated design solutions and case
videos.
