Overview

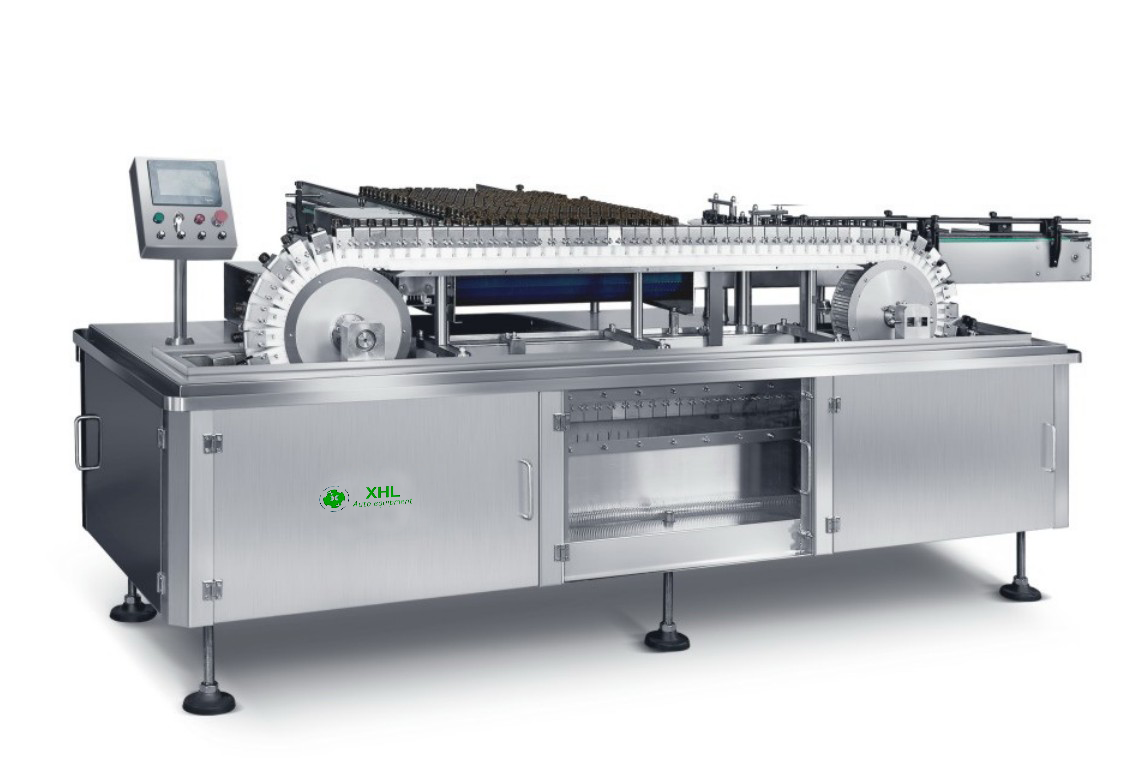

The GZXP linear bottle washing machine is improved by our company
after referring to similar foreign products. It has such advantages
as beautiful appearance, reasonable layout, simple structure,
convenient operation and stable production. It is suitable for
cleaning the inside and outside of round bottles or
irregular-shaped bottles with shoulder holders. Alternate washing
is carried out by three water and three gas (purified water and
injection water, purified gas), so as to make the bottle meet the
production process requirements, and the bottle is initially blown
dry.
According to the production requirements, it can be equipped with
an ultrasonic device.
Performance Features
-Unique structure. It adopts synchronous belt to drive the bottle
mold and fix the bottle. The bottles are turned and inverted for
washing.
-The machine can replace the QCLW vertical drum type machine, with
better economical efficiency.
-Linear continuous bottle moving, high production capacity, no
bottle breaking and no bottle jam.
-The cleaning process is reasonable and the bottle after cleaning
has high cleanliness.
-Little water consumption.
-It can be used singly or for linked production.
-Conforming to GMP requirements.
Main Technical Parameters
| Applicable bottle type | 5-250ml bottles | Speed control | variable frequency speed control |
Power supply:
| 220V 50Hz | Single machine noise | ≤70db |
| Power consumption | ≤1.2kw | Weight | ≥600kg |
| Purified water consumption | 0.4-0.7t/h 0.1-0.4Mpa | Production capacity | 200-700 bottles/minute (depending on the bottle type) |
| Purified gas consumption | 20m3/h, 0.3-0.6Mpa | | |
About us
-Listed company founded in 2003(WINLONG GROUP CORPORATE)
-17 years’ manufacturing experience in the aseptic filling
production line.
-Exclusive manufacturing factory of 20,000 square meters
(Changzhou, Jiangsu)
-More than 100 famous enterprise business partners across China.
-Expanded global business network
-Proven design, efficient and reliabile products.
-Customized design to meet the customer’s demand.
Our Services and Warranty
1.We can customize the machine as customer required.
2.Available for OEM/ODM service.
3.Offer living broadcast or video support.
4.To Door installation and training service.
5.Offer filling line solution with customer requirement.
6.Customer’s design are welcomed.
7.Competitive price with on-time delivery.
8.Main spare parts one year warranty ( personal damaged except ).
We can customize with your packaging materials, production capacity
and demands.
We will provide you with associated design solutions and case
videos.
