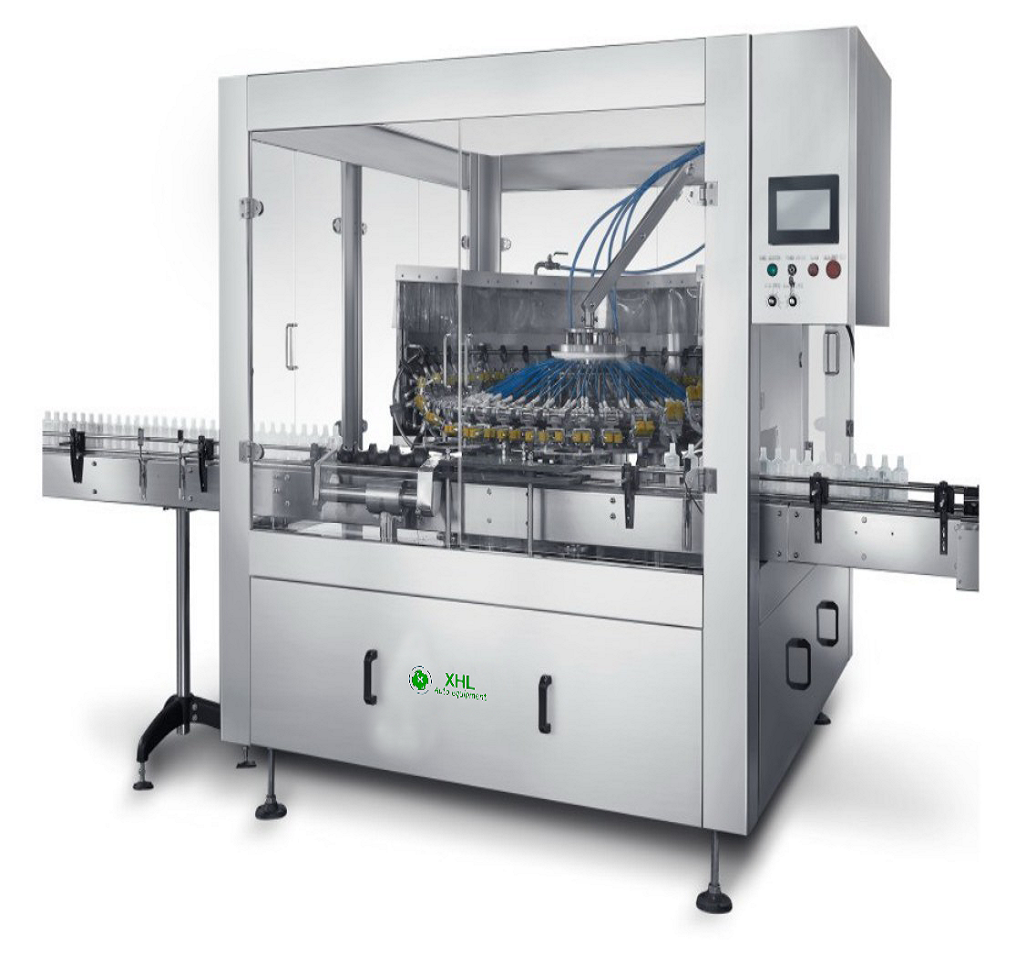

    600kg 0.3Mpa Automatic Bottle Washing Machine With 16 Heads

    XHL-CP16 automatic bottle turning washing machine with 16 heads

    Product Description

    Overview

    The bottle washing machine is mainly used for washing plastic bottles and glass bottles. It mainly consists of such procedures as elastic mechanical hand bottle grabbing, turning, bottle

    rinsing, bottle controlling, resetting, bottle discharging, etc. It is equipped with high pressure pump. It adopts continuous tracking washing, achieving fully automatic production.


    Main Performance features

    -The mechanical hand grabs the bottle mouth, and the lifting mechanism adopts man-machine interface adjustment. Replacement of parts is convenient.

    -It adopts continuous bottle moving mode, without bottle falling and with good stability and reliability.

    -Low water consumption.

    -Simple operation and convenient maintenance.

    -It can be used singly or for linked production.

    -The whole machine is designed according to GMP requirements.


    Main Technical parameters


    Applicable bottle type:

    5-1000ml bottles that can stand

    Purified gas consumption:

    20m3/h, 0.3-0.6Mpa

    Power supply:

    220V 50Hz

    Speed control:

    variable frequency speed control

    Power consumption:

    ≤1.2kw

    Single machine noise:

    ≤70db

    Purified water consumption:

    0.4-0.7t/h 0.1 -0.4Mpa

    Weight:

    ≥600kg

    Production capacity:

    40-250 bottles/minute (depending on the bottle type and the number of bottle washing heads)


    600kg 0.3Mpa Automatic Bottle Washing Machine With 16 Heads600kg 0.3Mpa Automatic Bottle Washing Machine With 16 Heads


    Our Partner

    600kg 0.3Mpa Automatic Bottle Washing Machine With 16 Heads


    Our service and warrantee


    1.We can customize the machine as customer requried ;
    2.Available for OEM/ODM service ;
    3.Offer living broadcast or video support;
    4.To Door installation and training service ;
    5. Offer filling line solution with customer required
    6.Customer’s design are welcomed.


    We can customize with your packaging materials, production capacity and demands. We will provide you with associated design solutions and case videos.
