Overview

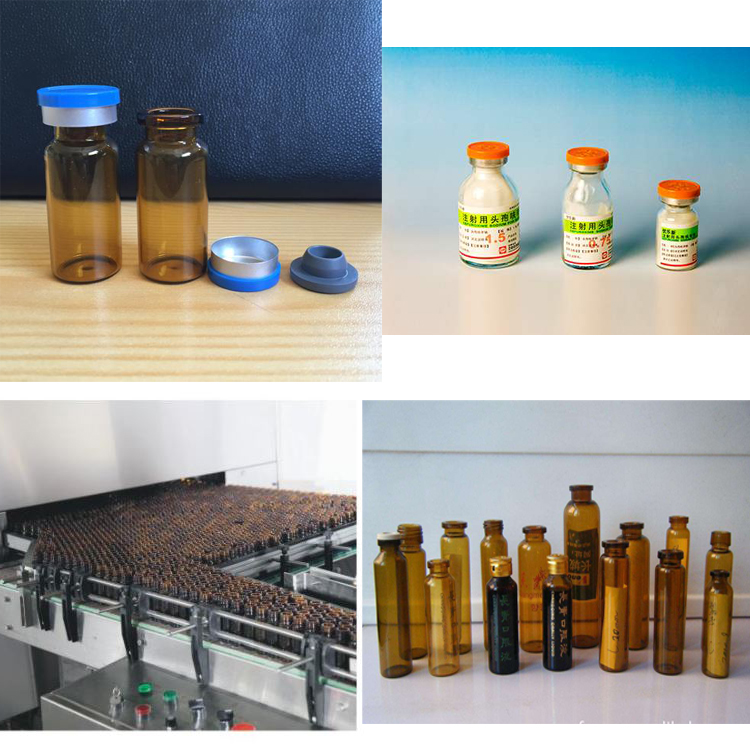

The ultrason washing machine is mainly used for washing small and
medium-volum vials, oral liquid bottles and ampoules in the
pharmaceutical industry. It can automatically complete the whole
production process including bottle feeding, ultrasonic washing,
external washing. internal washing and bottle discharging. The
machine runs stably and reliably with low breakage rate. The output
can be steplessly regulated and the operation is convenient. It can
be used singly, and can also work with tummel sterilization dryer
and filling and capping unit for linked production. The oral liquid
bottle after cleaning by the machine has high cleanliness and meets
GMP requirements.
Main Performance features
Mechanical lubrication uses a centralized oil supply system.
- Tilted pipe hard pipe connection.
- Full cleaning process monitoring: pressure transmitter control
monitoring. All monitoring data can be stored and selected for
printing.
Component selection:
1. The pneumatic diaphragm valve of GEMÜ can be used for on-off
control of water for injection and compressed air.
2. The imported pipeline pumps with such brands as GLOBAL and
Grundfos are available for users to choose.
3. The main bearings of the machine are imported bearings from SKF
and some are from lGUS.
4. The water and gas hoses connected at the mechanical moving parts
are products of imported brands, adopting quick connection and
meeting medical hygiene requirements.
5.The outer cover is made of pressure-resistant plate, adopting
fully automatic lifting, which can be realized on the touch screen.
6. The cam is made of 40Cr, subject to new heat treatment process,
and is more durable.
Main Technical parameters
Product model: QCLW80, QCLW100, QCLW120
Max Production capacity(5ml) : 24000pcs/H 30000pcs/H 36000pcs/H
Breakage rate: ≤0.3%
Water supply: >1.5m³/h
Air supply: >100m³/h
Water consumption: 0.25Mpa 50℃ 0.8m³/h
Air consumption: 0.25Mpa 60m³/h
Power: 15Kw
weight: 2900kg
Product Description
Our Partner
Our service and warranty
1.We can customize the machine as customer requried ;
2.Available for OEM/ODM service ;
3.Offer living broadcast or video support;
4.To Door installation and training service ;
5. Offer filling line solution with customer required
6.Customer’s design are welcomed.
We can customize with your packaging materials, production capacity
and demands. We will provide you with associated design solutions
and case videos.
