Product Description
Overview
The production line of the eye drops is consists of LP Automatic
Bottle Unscrambler, DQX/12 Air Rinser, YG4/2/2-100. Mainly to the
completion of the eye drops bottle Unscrambler, bottle conveying,
air wash, metering packaging, plus stuffed inside and outside screw
etc processes. The entire production process ,is completed laminar
flow operating under the protection and sterile isolation ,and the
regional isolation protection, ensures that the eye drops sterile
production. Line meet new national version of GMP requirements,
production line also appliesto other small-capacity plastic
bottles.
System Comonents
·Store quantities of bottles, automatic unscrambling system Convoy
bottle, reject inverted bottle system
·Static elimination, air washing
·Precision Ceramics, bottle indexing system
·Vacuum pick and auto place system
·Constant magnetic torque, positioning capping system Aseptic
laminar flow protection system
·Alterative peristaltic pump system instead of ceramic pump
Main Technical parameters
| Product Model | XYG4/2/2 |
| Applied to bottle used | 5-30ml plastic bottle |
| Filling heads | 4 heads |
| Production capacity | 90-120bpm |
| Bottle air washing heads | 12 |
| Plug placing heads | 2 |
| Capping heads | 2 |
| Filling precision | ≤±1% |
| Qualified bottle air washing | 100% |
| Qualified plug placing | ≥99.8% |
| Qualified cap placing | ≥99.8% |
| Net Weight | 3000kg |
| Overall dimension(mm) | 6780*2380*2000mm(Exclude LAF) |
| Total power | 5kw 220V 50Hz |

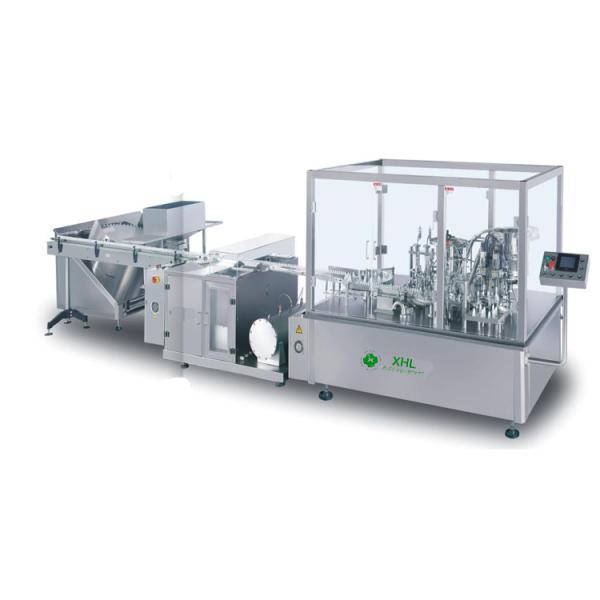

Product Images
Our Factory
Our Warehouse
About us
-Listed company founded in 2003(WINLONG GROUP CORPORATE)
-17 years’ manufacturing experience in the aseptic filling
production line.
-Exclusive manufacturing factory of 20,000 square meters
(Changzhou, Jiangsu)
-More than 100 famous enterprise business partners across China.
-Expanded global business network
-Proven design, efficient and reliabile products.
-Customized design to meet the customer’s demand.
Why choose us?
1. 17 years manufacture in filling line and machine
2. 2 years alibaba supplier
3. 100% QC inspection before shipment
4. 12 months warranty
5. Product Certificated by CE, ISO
Our Partner
Our service and warrantee
1.We can customize the machine as customer requried ;
2.Available for OEM/ODM service ;
3.Offer living broadcast or video support;
4.To Door installation and training service ;
5. Offer filling line solution with customer required
6.Customer’s design are welcomed.
We can customize with your packaging materials, production capacity
and demands. We will provide you with associated design solutions
and case videos.
