Company Profile
Founded in 2003, Jiangsu Winlong Pharmaceutical Machinery Co., Ltd.
(stock code:836556), formerly known as Jiangsu Winlong Filling
Machinery Co.( Ltd., is located in Jintan District, Changzhou City,
Yangtze River Delta Economic Development Zone. Mainly engaged in
providing overall solutions for smart workshops in pharmaceutical,
biological, health product and daily chemical industries and
manufacturing, selling, importing and exporting other packaging
machinery products, it is a high-tech enterprise and a member unit
of China Association for Pharmaceutical Equipment.
It is an important strategic objective of Winlong to participate in
international competition and become stronger and more specialized.
Our company attaches great importance to independent innovation, so
that our product technology and quality stand at the forefront in
the industry in China. With advanced technological innovation
capacity and well-trained personnel, it provides domestic and
foreign customers with overall individualized solutions for
automatic production of many packaging production lines. In
addition, it has also been granted a number of patents for
invention. While actively responding to “Made in China 2025” and
promote the industry 4.0 system engineering project, we are
creating value for customers.
Our Factory
Our Warehouse
Why choose us?
1. 17 years manufacture in filling line and machine2. 2 years alibaba supplier
3. 100% QC inspection before shipment
4. 12 months warranty
5. Product Certificated by CE, ISO

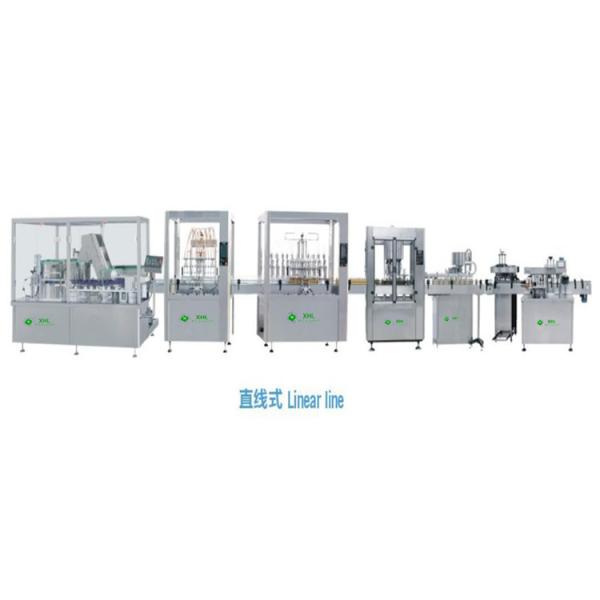

Overview
This production line is applied for filling syrup, oral liquid,
tincture, lotion, agrochemical, solvent etc. in the field of
pharmaceutical, foodstuff, agrochemeical, chemical, fully meet the

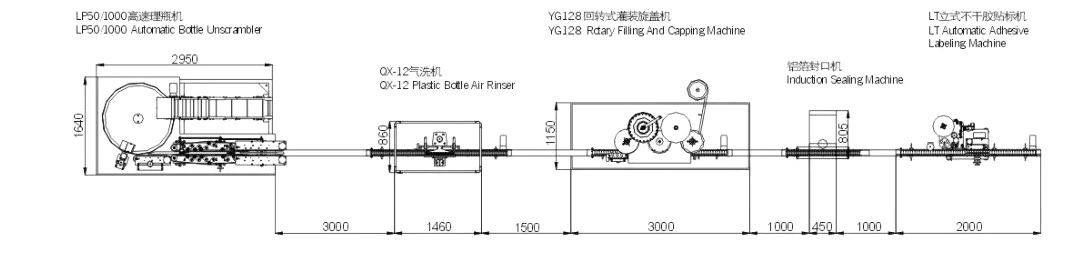

GMP regulation. Full complete line accomplish automatic
unsrambling, air rinsing, piston pump filling, screw capping,
induction sealing, labeling. Whole line covers an small area,
running stably, and economic and practical.
Features
-Adopt automatic unscramble bottle,instead of handworking,saving
labor.
-Purified air is used to rinse bottles, ensuring clean bottles.It
is also equipped with the electrostatic eliminating high ion wind
device.
-Adopt volumetric piston pump to fill high precision,fit to light
liquid and medium viscosity product, pump is easily taken
down,convenient to clean and sterilize.
-The sealing of piston pump is made of different kinds of
material,such as silicone,Teflon etc, optional ceramic pump in
special use.
-PLC control system,frequency conversion adjustable speed.
-Filling amount of all pumps are major adjusted in one time, minor
adjustment for each pump.Easy and quick operate.
-Filling system has the function of shrinking, no drop leakage.Top
bottom fill,mostly reduce foam.
-Adjustable system to fit to various kinds of container without
interchange part.
-The whole machine is designed and produced accordance with GMP
regulation.
-Linear filling advantage: convenient changeover and maintenance
when changing different bottles.
-Rotary filling advantage: small floor space, continuous running,
higher efficiency.
Main Technical parameters
Alternative filling volume: | 10-30ml,30-60ml,50-120ml,100-250ml,250-500ml | Suit to bottle shape: | round, flat,irregular |
Filling head: | 12 nozzles | Air rinsing head: | 12 nozzles |
Capping heads: | 8 heads | Filling precision: | ≤±1% |
Qualified capping: | ≥99.8% | Production capacity: | 5000-7200BPH |
Power supply: | 220/380V 50Hz | Power consumption: | ≤8Kw |
Compressed air required | 0.4-0.6MPa 20-35m3/h |
Our Partner
Our service and warrantee
1.We can customize the machine as customer requried ;
2.Available for OEM/ODM service ;
3.Offer living broadcast or video support;
4.To Door installation and training service ;
5. Offer filling line solution with customer required
6.Customer’s design are welcomed.
We can customize with your packaging materials, production capacity
and demands. We will provide you with associated design solutions
and case videos.
