Overview

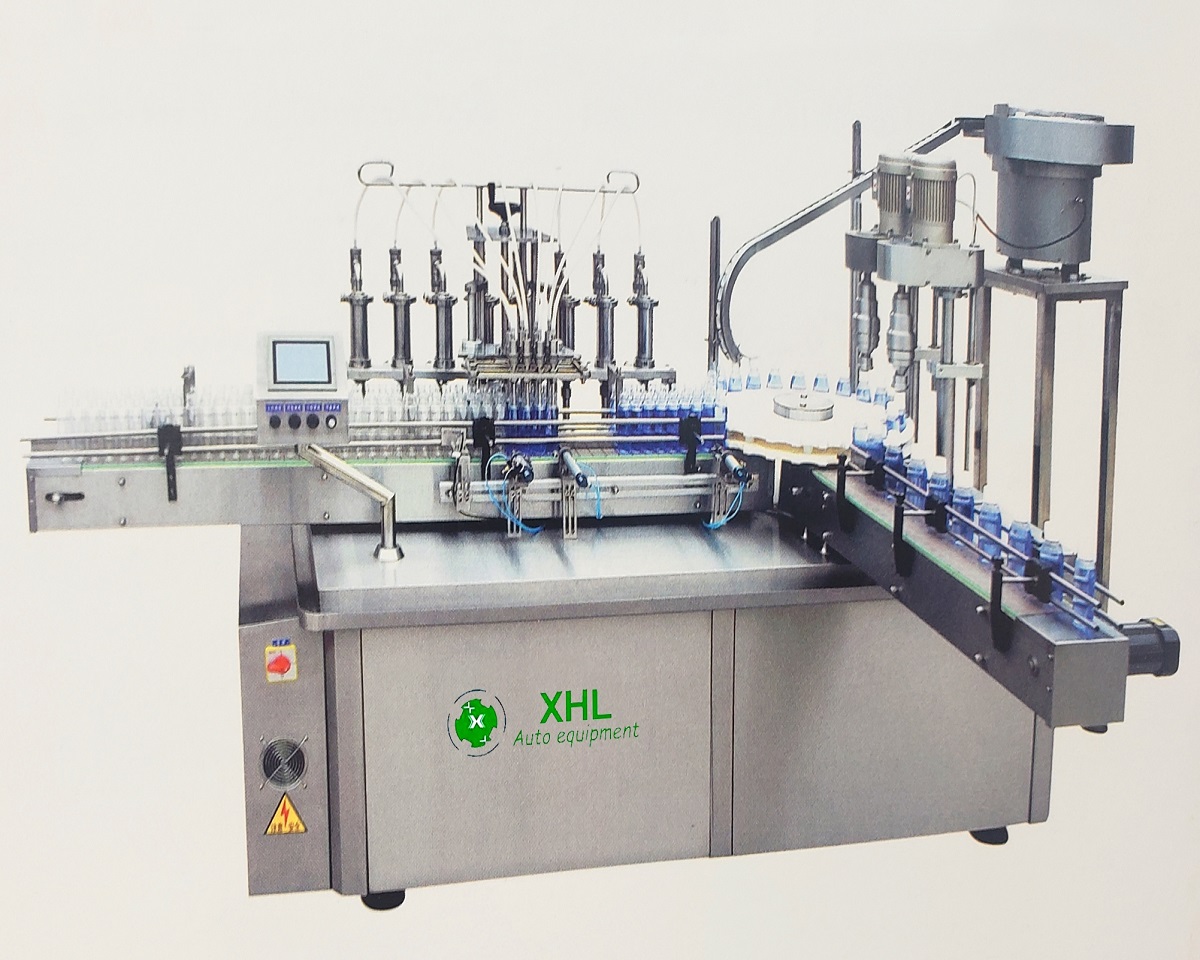

YG8/2 automatic volumetric inline filling & capping machine is new
generation utility product, developed from most advanced technology
to suit to market demand. The machine adopt SS316L volumetric
injection pump, auto cap orienting and capping together. Economic
utility, low plant cover, the machine is widely applied to liquid
packing in the market of pharmaceutical, pesticide, chemical,
foodstuff, cosmetic etc, conforms to the GMP requirements.
Features
-Adopt volumetric injection pump to fill high precision, also fill
various viscosity liquid. Easy knock-down pump structure,
convenient to clean and sterilize.
-The piston ring of volumetric injection pump use different
material of silicone, polyflon or other kinds according to liquid
characteristic, use ceramic pump in special industry.
-PLC control system, frequency conversion adjusting speed, high
degree automation.
-No bottle, no fill, quantity auto metering.
- Filling quantity of all pumps can be adjusted in one time.
Micro-adjustment for each pump can also be done. Easy and quick
operation.
-Filling system has the function of shrinking, no drop leakage..
Bottom diving fill, no foam.
- Applicable to various sizes of container, easy adjusting, short
change-overs.
-The whole machine is designed according to the GMP requirements.
Main Technical Parameter
| ITEMS | YG8/2 | YG4/1 |
| Filling nozzles: | 8 | 4 |
| Capping heads: | 2 | 1 |
| Filling range: | 20~1000ml |
| Ideal filling range: | 20-100ml50-250ml100-500ml200-1000ml |
| Optional cap type: | anti-theft cap, screw thread cap, ROPP cap |
| Filling speed: | 3600-5000BPH | 2400-3000BPH |
| Filling precision: | ≤±1% |
| Yield of capping: | ≥99% | |
| Power supply: | 220V 50/60Hz |
| Power consumption: | ≤2.2kw | ≤1.2kw |
| Air pressure range: | 0.4~0.6MPa |
| Net weight: | 1000kg | 800kg |

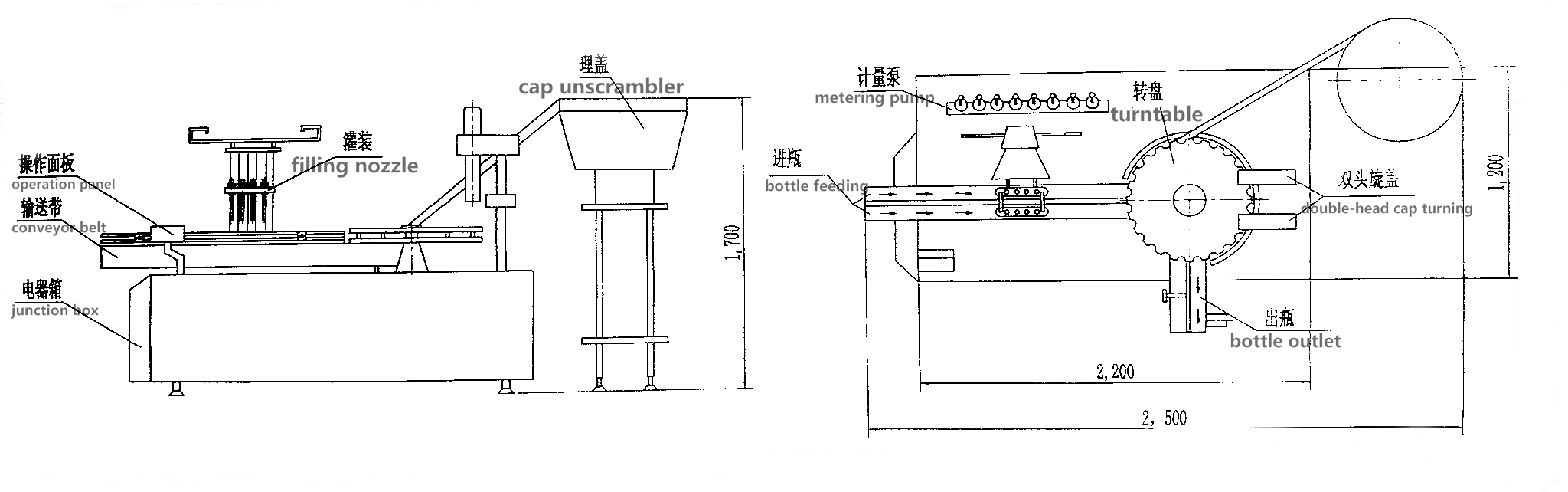

| Overall dimension(mm): | 2200*1200*1600 | 2000*1200*1600
|
About us
-Listed company founded in 2003(WINLONG GROUP CORPORATE)
-17 years’ manufacturing experience in the aseptic filling
production line.
-Exclusive manufacturing factory of 20,000 square meters
(Changzhou, Jiangsu)
-More than 100 famous enterprise business partners across China.
-Expanded global business network
-Proven design, efficient and reliabile products.
-Customized design to meet the customer’s demand.
Our Services and Warranty
1.We can customize the machine as customer required.
2.Available for OEM/ODM service.
3.Offer living broadcast or video support.
4.To Door installation and training service.
5.Offer filling line solution with customer requirement.
6.Customer’s design are welcomed.
7.Competitive price with on-time delivery.
8.Main spare parts one year warranty ( personal damaged except ).
We can customize with your packaging materials, production capacity
and demands.
We will provide you with associated design solutions and case
videos.
