5000ml 0.75kw High Viscosity Liquid Filling Machine

    Buy cheap 5000ml 0.75kw High Viscosity Liquid Filling Machine from wholesalers

    Buy cheap 5000ml 0.75kw High Viscosity Liquid Filling Machine from wholesalers
    • Buy cheap 5000ml 0.75kw High Viscosity Liquid Filling Machine from wholesalers
    • Buy cheap 5000ml 0.75kw High Viscosity Liquid Filling Machine from wholesalers
    • Buy cheap 5000ml 0.75kw High Viscosity Liquid Filling Machine from wholesalers

    5000ml 0.75kw High Viscosity Liquid Filling Machine

    Ask Lasest Price
    Brand Name : XHL
    Model Number : AVF/4
    Certification : ISO/CE
    Price : USD 19999-49999
    Payment Terms : L/C, T/T
    Supply Ability : 10 sets/month
    Delivery Time : about 30 days
    • Product Details
    • Company Profile

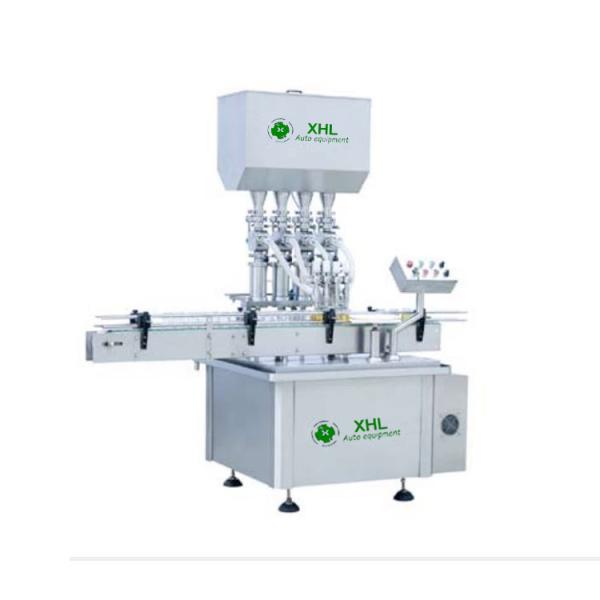

    5000ml 0.75kw High Viscosity Liquid Filling Machine

    XHL-AVF/4 Honey Chili Paste And Sauce Liquid Filling Machine With High Speed


    Product Description

    Overview


    AVF automatic viscocity filling machine is desigmed by referring to the same kind of foreign filling machines with extra functions increased. The product is simple and convient in operation, error correction, machine cleaning and maintenance. Widely used for filling various kinds of viscosity liquid products in the industries of daily chemicals, foodstuffs, pharmaceutics and oil etc.


    Characteristics


    - Adopt injection pump to fill high precision, large range of adjusting dosage.

    -It allows to adjustment of filling volume for all filling pumps at the same time, also for minor adjustment of each filling pump to achieve fill high volume accuracy.

    -This pump system don' t absorb the material, good chemical stability, It has particular advantage when filling erosive material.

    -All contact parts is made of SS 316L and silicone tube, be convenient to clean by CIP.

    -Filling system has the function of shrinking, no drop leak.

    -Apply to fill various viscosity liquid.

    -All of electric elements choose famous brand such as ltaly AT, Japan Mitsubishi and Korea AUTONICS

    - Frequency conversion control seed, auto count, no bottle no fill

    The whole machine is designed according to requirements of GMP.


    Main Technical parameters


    Product modelAVF-4AVF-6AVF-8AVF-12AVF-16
    Number of filling heads4681216
    Filling precision20-1000ml: ≤±1% 1000-5000ml: ≤±0.5%
    Filling speed bottles/min40-6060-8070-9080-10090-120
    Filling range20-5000ml
    Air pressure range0.4-0.6Mpa
    Single machine noise≤50dB
    Power supply220V 50/60HZ
    Power consumption0.75kw0.75kw1.2kw2.2kw2.2kw
    weight550kg900kg1150kg1500kg1750kg
    Outline dimensions(mm)

    1300*1200*

    1800


    1600*1200*

    1800


    1900*1200*

    1800


    2300*1200*

    1800


    2600*1200*

    1800


    5000ml 0.75kw High Viscosity Liquid Filling Machine5000ml 0.75kw High Viscosity Liquid Filling Machine5000ml 0.75kw High Viscosity Liquid Filling Machine

    5000ml 0.75kw High Viscosity Liquid Filling Machine5000ml 0.75kw High Viscosity Liquid Filling Machine

    Our Factory


    5000ml 0.75kw High Viscosity Liquid Filling Machine5000ml 0.75kw High Viscosity Liquid Filling Machine5000ml 0.75kw High Viscosity Liquid Filling Machine

    Our Warehouse

    5000ml 0.75kw High Viscosity Liquid Filling Machine5000ml 0.75kw High Viscosity Liquid Filling Machine


    Why choose us?

    1. 17 years manufacture in filling line and machine

    2. 2 years alibaba supplier
    3. 100% QC inspection before shipment
    4. 12 months warranty
    5. Product Certificated by CE, ISO

    Our Partner


    5000ml 0.75kw High Viscosity Liquid Filling Machine


    Our service and warrantee


    1.We can customize the machine as customer requried ;
    2.Available for OEM/ODM service ;
    3.Offer living broadcast or video support;
    4.To Door installation and training service ;
    5. Offer filling line solution with customer required
    6.Customer’s design are welcomed.


    We can customize with your packaging materials, production capacity and demands. We will provide you with associated design solutions and case videos.
