Overview

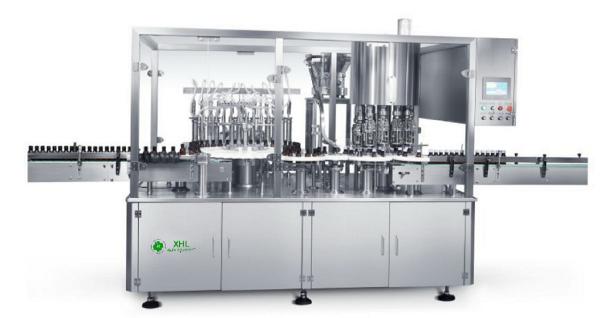

The filling and cap turning(capping) integrated machine is mainly
applied for filling and sealing of 20-120ml liquids of different
viscosities such as oral liquids, syrup, medicinal wine, health
products and ticnture in such industries as
medicine,biology,food,health products,etc.
Features
-Two-in-one structure of linear tracking filling and rotary cap
turning (capping). With servo driving, the filling volume is
adjusted on the man—machine interface with simple operation. Taking
small floor space with stable and reliable running.
-It adopts the plunger metering pump to fill liquids of various
viscosities with high precision. The pump can be easily
disassembled, making cleaning and sterilization convenient. Linear
continuous bottle moving, bottles positioned by screw or
synchronous belt, tracking filling.
-The seal ring of the plunger metering pump is made of silicon
rubber, Teflon or other materials depending on different industries
and liquid ingredients. Ceramic material can be used in special
applications. The filling principle also includes the use of
peristaltic pump.
-PLC control system with variable frequency speed control and high
degree of automation.
-The filling system is provided with the anti-leaking device,
realizing filling from the bottom of the bottle, rising slowly and
avoiding bubbles.
-The tightness of the air gripper type cap turning head can be
adjusted without damaging the bottle and cap.
-The whole machine is suitable for various specifications of
bottles and adjustments can be completed conveniently within a
short time.
-The capping head adopts two knives for rolling threads and two
knives for sealing with flexible design. The blade is subject to
quenching treatment with good durability. The seals and threads are
beautiful and uniform. The capping head can also be designed to be
used for pull caps.
-Explosion-proof design can be adopted for products used in special
industries or special types of products.
-It can be equipped with the cap storage and lifting mechanism and
the mechanism for identifying reverse caps and eliminating
nonconforming products.
-The whole machine is designed according to GMP requirements.
Main Technical Parameters
| Model: | XHL-KYZG12-8 | Production capacity(taking 50/100ml as an example): | 150-220 bottles/minute |
| Number of filling heads: | 12 heads | Number of cap turning (pressing) heads: | 8 heads |
| Filling range: | 20-150ml | Filling accuracy: | ≤±0.5% |
| Cap turning and (pressing) pass rate: | ≥99.8% | Power supply: | 220/380V 50/60Hz |
| Power consumption: | ≤3.5KW | Compressed air: | 0.4-0.6MPa |
| Net weight: | 2000 KG | Outline dimensions: | 3000*1000*1800(mm)
|
About us
-Listed company founded in 2003(WINLONG GROUP CORPORATE)
-17 years’ manufacturing experience in the aseptic filling
production line.
-Exclusive manufacturing factory of 20,000 square meters
(Changzhou, Jiangsu)
-More than 100 famous enterprise business partners across China.
-Expanded global business network
-Proven design, efficient and reliabile products.
-Customized design to meet the customer’s demand.
Our Services and Warranty
1.We can customize the machine as customer required.
2.Available for OEM/ODM service.
3.Offer living broadcast or video support.
4.To Door installation and training service.
5.Offer filling line solution with customer requirement.
6.Customer’s design are welcomed.
7.Competitive price with on-time delivery.
8.Main spare parts one year warranty ( personal damaged except ).
We can customize with your packaging materials, production capacity
and demands.
We will provide you with associated design solutions and case
videos.
