Overview
YG50/1000 automatic volumetric inline filling machine is new
generation utility product, developed from most advanced technology
to suit to market demand. The machine adopt SS316Lvolumetric
injection pump, quantity of pumps is designed by customers order.
Convenient to combine with the bottle unscrambler and capper. The
machine is widely applied to liquid packing in the market of
pharmaceutical, pesticide, chemical, foodstuff, cosmetic etc, meet
to the requirement of GMP.
Main Performance features
-Adopt volumetric injection pump to fill high precision, also fill
viscosity material. Easy knock-down pump structure, convenient to
clean and sterilize.
-The piston ring of volumetric injection pump use different
material of silicone, polyflon or other kinds according to liquid
characteristic, use ceramic pump in special industry.
PLC control system. frequency conversion adjusting speed, high
degree automatization, no bottle no fill.
-Filling quantity of all pumps is adjusted in a lump, minim
adjustable for each pump. Easy and quick operate.
-Filling system has the function of shrinking, no drop leak. Bottom
diving fill, no foam.
-Suitable to various sizes of container, easy adjusting, short time
cost.
-The whole machine is designed according to requirements of GMP.
Main Technical parameters
| Product model | YG50/1000-4 | YG50/1000-8 | YG50/1000-12 | YG50/1000-16 | YG50/1000-20 |
| Number of filling heads | 4 | 8 | 12 | 16 | 20 |
| Filling precision | 20-1000ml: ≤±1% 1000-5000ml: ≤±0.5% |
| Filling speed bottles/min | 40-60 | 60-80 | 70-90 | 80-100 | 90-120 |
| Filling range | 20-5000ml | 20-500ml |
| Ideal Filling range | 20-5000ml |
| Air pressure range | 0.4-0.6Mpa |
| Single machine noise | ≤50dB |
| Power supply | 220V 50/60HZ |
| Power consumption | 0.75kw | 0.75kw | 1.2kw | 2.2kw | 2.2kw |
| weight | 500kg | 800kg | 1000kg | 1300kg | 1500kg |
| Outline dimensions(mm) |
1300*1000* 1800 |
1600*1000* 1800 |
1900*1000* 1800 |
2300*1000* 1800 |
2600*1000* 1800 |

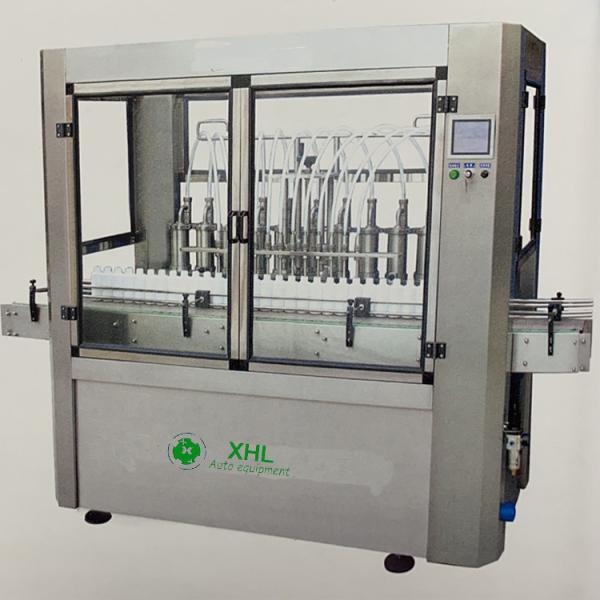

Product Images

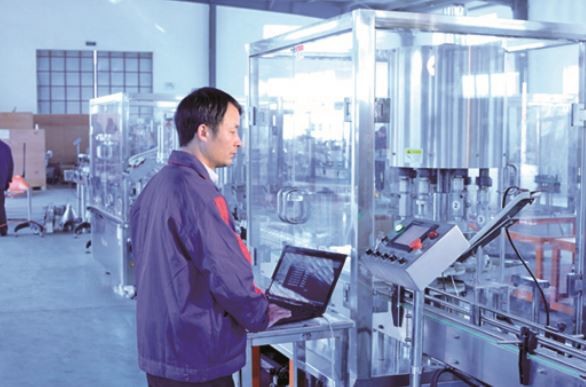

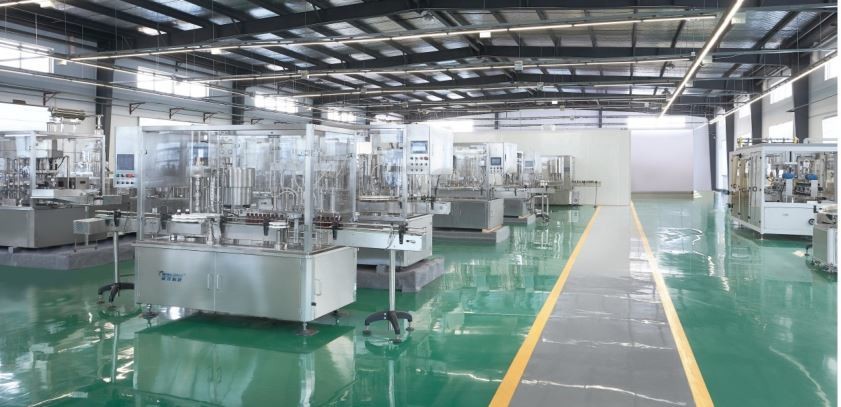

Our Factory
Our Warehouse
About us
-Listed company founded in 2003(WINLONG GROUP CORPORATE)
-17 years’ manufacturing experience in the aseptic filling
production line.
-Exclusive manufacturing factory of 20,000 square meters
(Changzhou, Jiangsu)
-More than 100 famous enterprise business partners across China.
-Expanded global business network
-Proven design, efficient and reliabile products.
-Customized design to meet the customer’s demand.
Why choose us?
1. 17 years manufacture in filling line and machine2. 2 years alibaba supplier
3. 100% QC inspection before shipment
4. 12 months warranty
5. Product Certificated by CE, ISO
Our Partner
Our service and warrantee
1.We can customize the machine as customer requried ;
2.Available for OEM/ODM service ;
3.Offer living broadcast or video support;
4.To Door installation and training service ;
5. Offer filling line solution with customer required
6.Customer’s design are welcomed.
We can customize with your packaging materials, production capacity
and demands. We will provide you with associated design solutions and case
videos.
