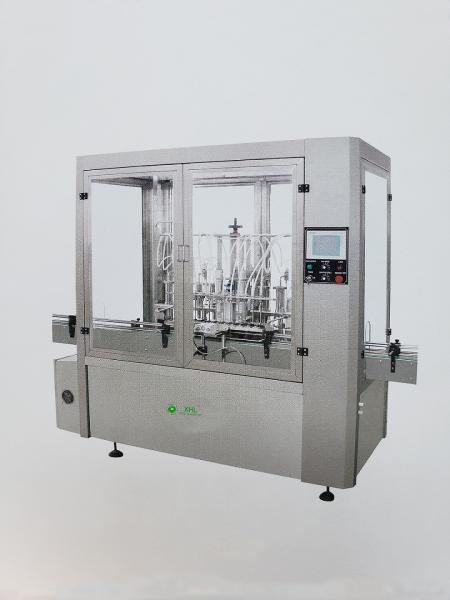

Overview
The YG series contains many kinds of product, including YS-6,
YG-12, YG-4. The difference between these machines is that they
have different filling heads and filling speed. YOU can choose it
depends on your requirement. The machine adopt SS316L volumetric
injection pump, quantity of pumps is designed by customers' order.
Convenient to combine with the bottle unscrambler and capper. The
machine is widely applied to liqued packing in the market of
pharmaceutical, pesticide, chemical, foodstuff, cosmetic etc, meet
to the requirement of GMP.
Features
-It adopts the piston metering pump to fill liquids of various
viscosities with high precision. The pump can be easily
disassembled , making cleaning and sterilization convenient.
-The seal ring of the piston metering pump is made of different
kinds of materials such as silicon rubber, Teflon and etc.Ceramic
material can also be used in special applications.
-It adopts the PLC control system with variable frequency speed
control and high degree of automation. No filling is made if there
is no bottle.
-The filling volume can be conveniently adjusted:The filliing
volume of all metering pumps can be adjusted in one step, or fine
adjustment of each pump can be made according to the need. It is
featured by convenient operation and quick adjustment.
-The filling system is provided with the anti-leaking device,
realizing filling from the bottom, rising slowly and avoiding
bubbles.
-The whole line is suitable for various kinds of bottles and
adjustments can be completed convenientlywithin a short time.
-The whole line is designed in accordance with GMP regulations.
Main Technical Parameter
| Items | YG-4 | YG-8 | YG-12 | YG-16 | YG-20 | YG-24 |
| Filling nozzles | 4 heads | 8 heads | 12 heads | 16 heads | 20 heads | 24 heads |
| Filling range | 20-500ml |
| Ideal filling range | 5-20ml20-60ml60-150ml150-250ml250-500ml |
| Filling speed(100ml)BPM | 40-60 | 60-80 | 70-100 | 90-120 | 120-160 | 160-180 |
| Filling precision | ≤±1% |
| Air pressure range | 0.4-0.6MPa |
| Power supply | 220/380V 50/60Hz |
| Power consumption | 0.75kw | 0.75kw | 1.2kw | 2.2kw | 2.2kw | 2.2kw |
| Single machine noise | ≤50dB |
| Net weight | 500kg | 800kg | 1000kg | 1300kg | 1500kg | 1700kg |
| Overall dimension(mm) | 1300*1000*1800 | 1600*1000*1800 | 1900*1000*1800 | 2300*1000*1800 | 2300*1000*1800 | 2600*1000*1800
|
About us
-Listed company founded in 2003(WINLONG GROUP CORPORATE)
-17 years’ manufacturing experience in the aseptic filling
production line.
-Exclusive manufacturing factory of 20,000 square meters
(Changzhou, Jiangsu)
-More than 100 famous enterprise business partners across China.
-Expanded global business network
-Proven design, efficient and reliabile products.
-Customized design to meet the customer’s demand.
Our Services and Warranty
1.We can customize the machine as customer required.
2.Available for OEM/ODM service.
3.Offer living broadcast or video support.
4.To Door installation and training service.
5.Offer filling line solution with customer requirement.
6.Customer’s design are welcomed.
7.Competitive price with on-time delivery.
8.Main spare parts one year warranty ( personal damaged except ).
We can customize with your packaging materials, production capacity
and demands.
We will provide you with associated design solutions and case
videos.
