Overview
The YG series machine includes many kinds of products. The filling

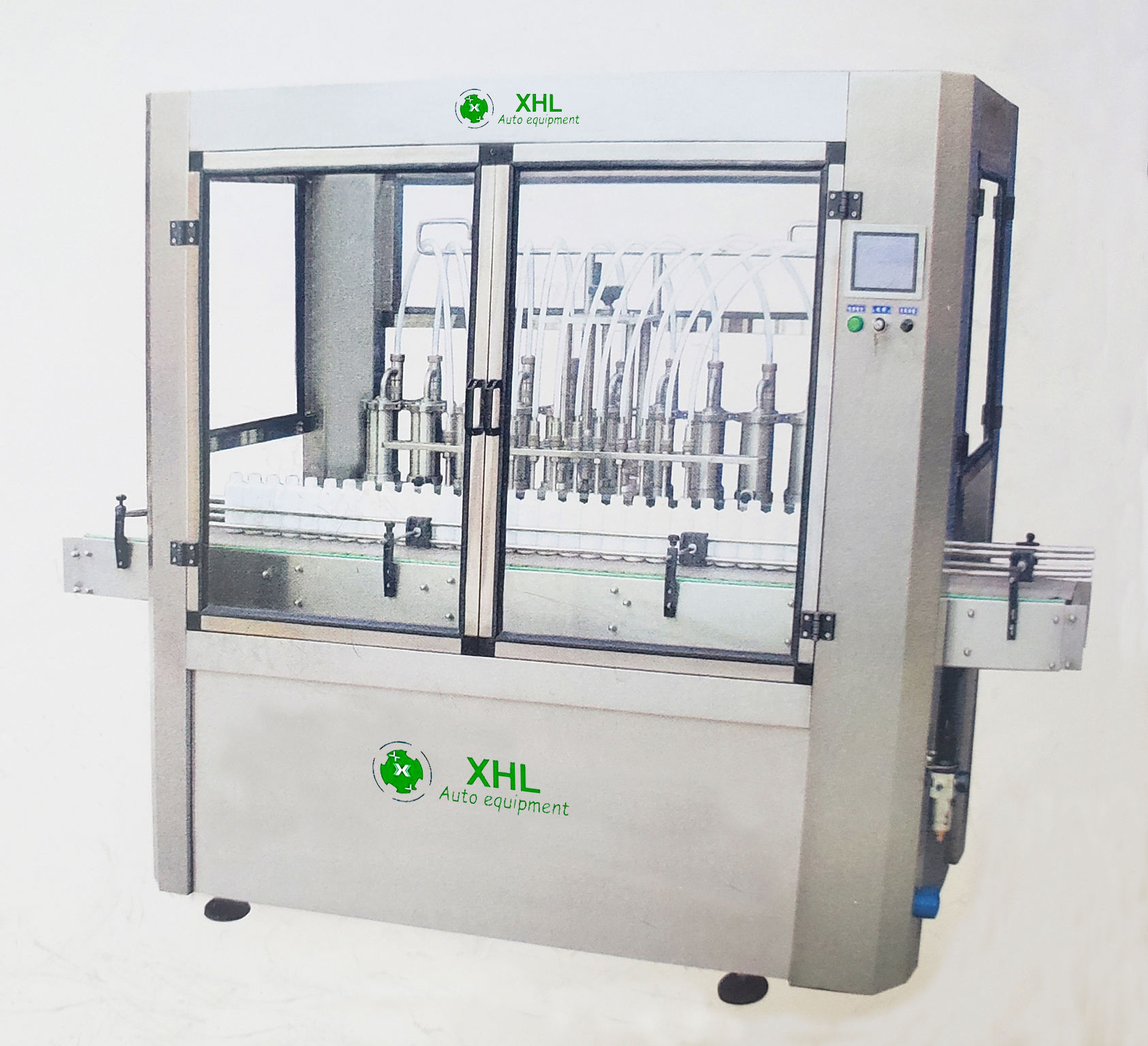

speed is different.YG50/1000 full automatic volumetric on-line
filling machine is a new generation of products, developed by the
most advanced technology, so as to meet the market demand. The
machine adopts SS316L volume pump, the number of pumps can be
determined according to the customer's requirements. Convenient to
be combined with bottle remover and bottle capper. The machine is
widely used in liquid packaging medicine, pesticide, chemical,
food, cosmetics and other markets. Fully comply with GMP
requirements. Also, please contact us if you have your own idea.
Main features
-Adopt volumetric injection pump to fill high precision, also fill
viscosity material. Easy knock-down pump structure, convenient to
clean and sterilize.
-The piston ring of volumetric injection pump use different
material of silicone, polyflon or other kinds according to liquid
characteristic, use ceramic pump in special industry.
-PLC control system, frequency conversion adjusting speed, high
degree automation, no bottle no filling.
-Filling quantity of all pumps can be adjusted in one time, and
micro-adjustment can be done for each pump. Easy and quick operate.
-Filling head system has the shrinking function, no drop leakage.
Bottom immersion type filling, prevent bubble foaming.
-Suitable to various sizes of container, easy adjusting, short
change-over time.
-The whole machine is designed according to requirements of GMP.
Main Technical Parameters
| ITEMS | YG50/1000-4 | YG50/1000-8 | YG50/1000-12 | YG50/1000-16 | YG50/1000-20 |
| Filling nozzles: | 4 | 8 | 12 | 16 | 20 |
| Filling range: | 20-5000ml | 20-500ml |
| Ideal filling range: | 20-100ml50-250ml100-500ml200-1000ml500-2500ml1000-5000ml |
| Filling speed(100ml): | 40-60BPM | 60-80BPM | 70-90BPM | 80-100BPM | 90-120BPM |
| Filling precision: | 20-1000ml:≤±1%, 1000-5000ml:≤±0.5% |
| Air pressure range: | 0.4~0.6MPa |
| Power supply: | 220V 50/60Hz |
| Power output: | 0.75kw | 0.75kw | 1.2kw | 2.2kw | 2.2kw |
| Single machine noise: | ≤50dB |
| Net weight: | 500kg | 800kg | 1000kg | 1300kg | 1500kg |
| Overall dimension: | 1300*1000*1800 | 1600*1000*1800 | 1900*1000*1800 | 2300*1000*1800 | 2600*1000*1800
|
About us
-Listed company founded in 2003(WINLONG GROUP CORPORATE)
-17 years’ manufacturing experience in the aseptic filling
production line.
-Exclusive manufacturing factory of 20,000 square meters
(Changzhou, Jiangsu)
-More than 100 famous enterprise business partners across China.
-Expanded global business network
-Proven design, efficient and reliabile products.
-Customized design to meet the customer’s demand.
Our Services and Warranty
1.We can customize the machine as customer required.
2.Available for OEM/ODM service.
3.Offer living broadcast or video support.
4.To Door installation and training service.
5.Offer filling line solution with customer requirement.
6.Customer’s design are welcomed.
7.Competitive price with on-time delivery.
8.Main spare parts one year warranty ( personal damaged except ).
We can customize with your packaging materials, production capacity
and demands.
We will provide you with associated design solutions and case
videos.
