Overview

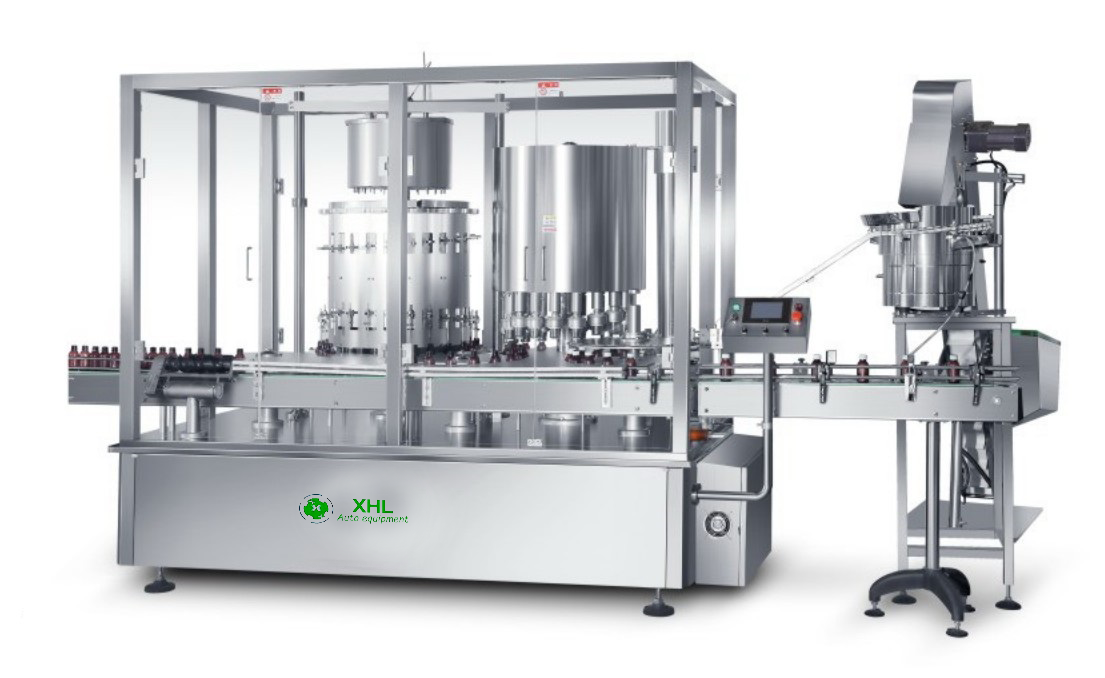

The filling and cap turning(capping) integrated machine is mainly
applied for filling, cap turning(capping) and sealing of liquids of
different viscosities such as oral liquids, syrup, medicinal wine,
health products and ticnture in such industries as
medicine,food,health products, daily chemical industry,
agrochemical industry,etc.
Features
-Integrating filling and cap turning (capping) and taking small
floor space, it adopts rotary continuous bottle moving mode. It is
suitable for small and large bottles with high output.
-The circumferential swing mechanism is adopted for filling and cap
turning (capping), with such features as stable and reliable
operation, high efficiency, easy-to- maintain structure and smart
design.
-It adopts the plunger metering pump to fill liquids of various
viscosities with high precision. The pump can be easily
disassembled, making cleaning and sterilization convenient. The
filling principle also includes the use of peristaltic pump,
negative pressure type, weighing type,self-flow type, reflux
defoaming type, etc.
-Each pump is driven by a set of servo motor. The filling volume is
adjusted on the man-machine interface, featured by convenient
operation and quick adjustment. A set of servo motor can also drive
many pumps, and each pump can realize fine adjustment.
-The seal ring of the plunger metering pump is made of silicon
rubber, Teflon or other materials depending on different industries
and liquid ingredients. Ceramic material can be used in special
applications.
-It can be equipped with CIP/SIP cleaning and sterilization system.
-PLC ccxitrol system with variable frequency speed control and high
degree of automation.
-The filling system is provided with the anti-leaking device,
realizing filling from the bottom of the bottle, rising slowly and
avoiding bubbles.
-The capping head adopts two knives for rolling threads and two
knives for sealing. The blade is subject to quenching treatment
with good durability. The seals and threads are beautiful and
uniform. The capping head aciopts flexible design with easy
adjustment, and can also be designed to be used for pull caps.
-The tightness of the air gripper type cap turning head can be
adjusted without damaging the bottle and cap.
-It can be equipped with the cap storage and lifting mechanism and
the mechanism for identifying reverse
caps and eliminating nonconforming products.
-The whole machine is designed according to GMP requirements.
Main Technical Parameters
| Model | XHL-HYGX/24-16 |
| Production capacity(taking 50/100ml as an example) | 200-250 bottles/minute |
| Number of filling heads | 24 heads |
| Number of cap turning (pressing) heads | 16 heads |
| Filling range | Commonly using 30/50/100 ml glass bottles,can be customized for
other 20-1000ml glass bottles |
| Filling accuracy | ≤±0.5-1% |
| Cap turning and (pressing) pass rate | ≥99.8% |
| Power supply | 220/380V 50/60HZ |
| Power consumption | ≤3.5KW |
| Compressed air | 0.4-0.6MPa |
| Weight | 2000 KG |
About us
-Listed company founded in 2003(WINLONG GROUP CORPORATE)
-17 years’ manufacturing experience in the aseptic filling
production line.
-Exclusive manufacturing factory of 20,000 square meters
(Changzhou, Jiangsu)
-More than 100 famous enterprise business partners across China.
-Expanded global business network
-Proven design, efficient and reliabile products.
-Customized design to meet the customer’s demand.
Our Services and Warranty
1.We can customize the machine as customer required.
2.Available for OEM/ODM service.
3.Offer living broadcast or video support.
4.To Door installation and training service.
5.Offer filling line solution with customer requirement.
6.Customer’s design are welcomed.
7.Competitive price with on-time delivery.
8.Main spare parts one year warranty ( personal damaged except ).
We can customize with your packaging materials, production capacity
and demands.
We will provide you with associated design solutions and case
videos.
