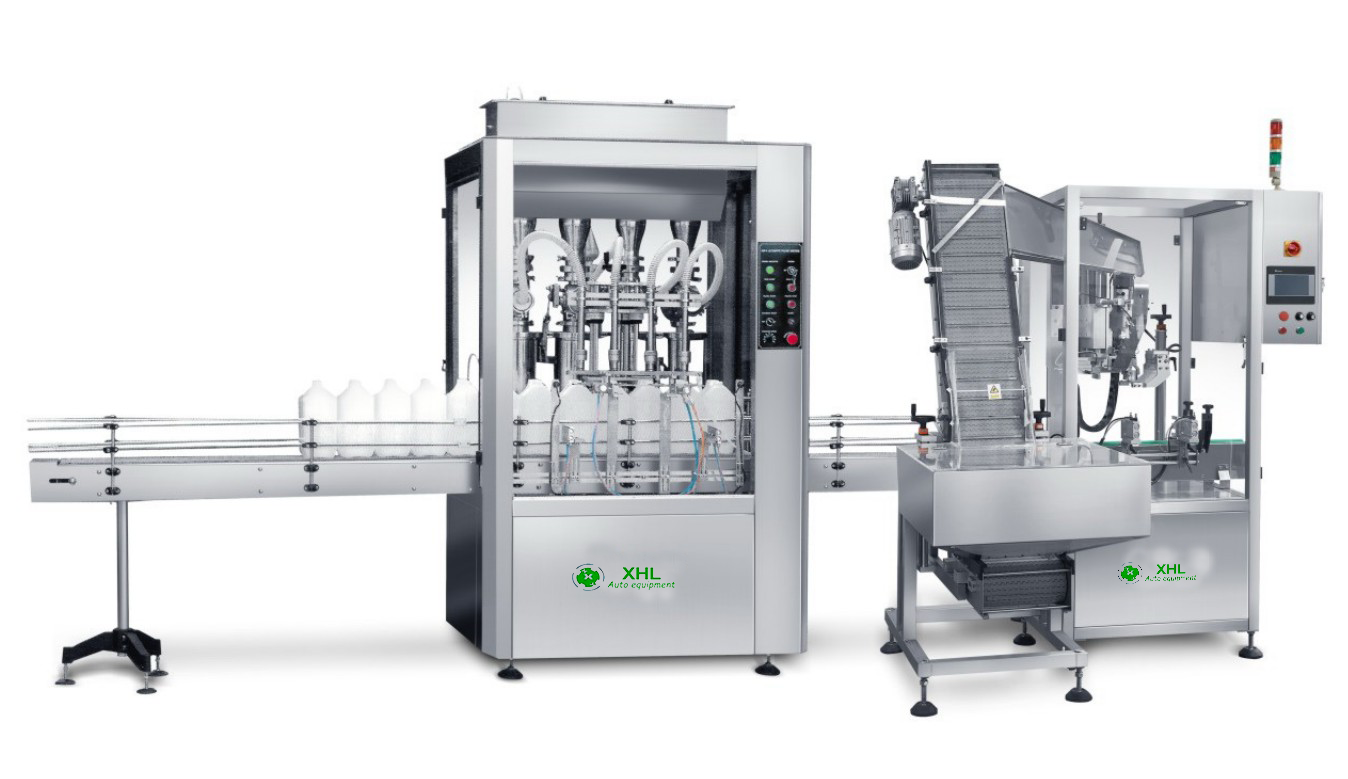

XPD/1 High-dosage Serum Filling and Cap Turning Machine For
high-concentrate liquid
Overview
The series of products are mainly used for filling of dialysate,
reagents and raw materials in such industries as medicine, biology,
chemical industry, etc. The whole production process conforms to
the new version GMP requirements. The production line inherits
internationally advanced technology, and incorporates various
patented technologies with independent intellectual property
rights. It has reached the advanced level and can substitute
similar imported products. The production line is also suitable for
high-end large barrel filling in other industries.
Main Features
-It adopts the weighing type filling principle to ensure that the
liquid is free from contamination. The filling accuracy is high. In
applications where the requirements are not high, the self-flow
type or negative pressure type filling principle can be adopted.
-The filling system is provided with the anti-leaking device,
realizing filling from the bottom of the bottle, rising slowly and
avoiding bubbles.
-The filling volume is adjusted on the man-machine interface with
simple operation and fast adjustment.
-During bottle washing, the robot arm is accepted to grab the
bottle, make the bottle mouth face downward for washing, and swing
the bottle to the left, right, front and back at different angles
to let the residual water in the bottle flow out.
-During cap turning, the mechanical manipulator is adopted for cap
taking, and the three-jawed pneumatic cap turning grip is adopted
for cap turning. Driven by servo motor with adjustable torque.
-It can be equipped with a stoppling mechanism.
-The whole line adopts the PLC control system with variable
frequency speed control and high degree of automation.
-The whole line adopts linear bottle moving. In order to save
space, the rotary bottle moving mode can also be adopted.
-The whole line is designed in accordance with GMP requirements.
-The whole line can complete filling, case packing, palletizing,
etc., only requiring 1-3 people for operation.
Main Technical Parameters
| Product Model | Washing XPD/1
Filling WLCZ/12
Turning XGD/1 |
| Stable production capacity(taking 10L tank as an example) | 15-20 barrels/minute |
| Filling range | 1-15L |
| Number of barrel washing robots | 1 head |
| Residual water volume | ≤±0.1% |
| Bottle moving mode | Linear intermittent type |
| Number of filling heads | 12 heads |
| Number of cap pressing heads | 1 head |
| Number of cap turning heads | 1 head |
| Filling accuracy | ≤±0.1% |
| Pressing and turning pass rate | ≥99.9% |
| Power supply | 220/380V 50/60HZ |
| Power | ≤10KW |
| Compressed air pressure | 0.4 - 0.6 MPa |
