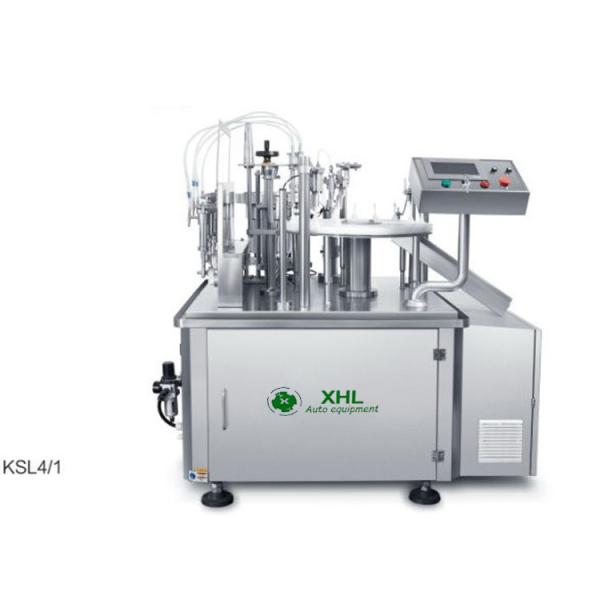

KSL4/1 Filling Production Line of Glycerine Enema and Other Small
Bottle Mouth
Overview

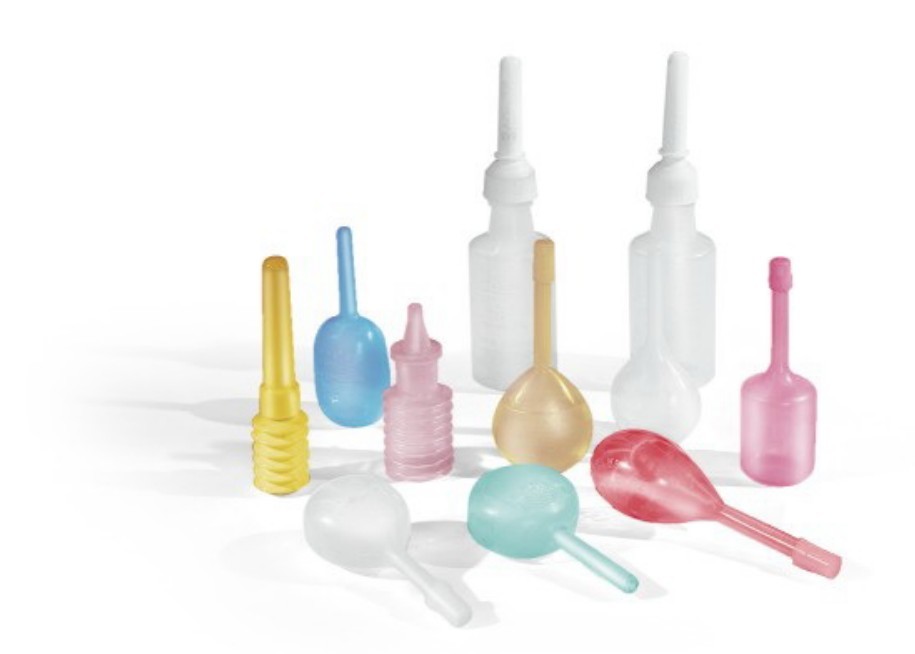

The series of products are suitable for filling of glycerine enema
and other bottles of small bottle mouth in the pharmaceutical
industry. The whole production process conforms to the new version

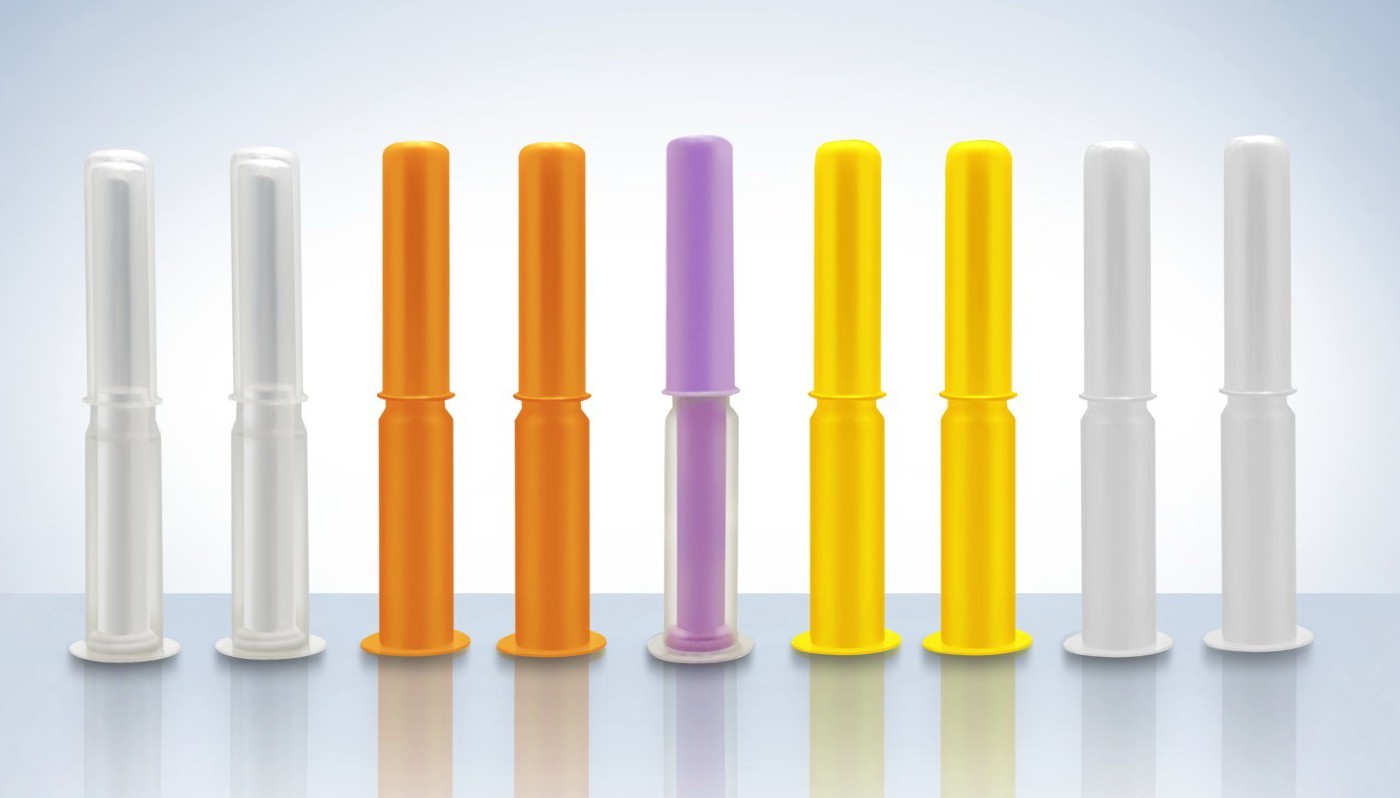

GMP requirements. As the packaging materials are all
irregular-shaped bottles, more robot functional devices or small
machines are incorporated. It has various patented technologies
with independent intellectual property rights. It has reached the
advanced level and can replace similar imported products.
Main Performance Features
-Three-in-one structure of bottle unscrambling, filling and cap
turning, taking small floor space with stable and reliable
operation.
-Effective methods are available to complete the functions of
bottle unscrambling, bottle moving and positioning for various
irregular-shaped bottles and flat bottles, meeting the needs for
automatic production.
-The 316L stainless steel plunger pump filling principle is
adopted. The filling volume can be adjusted integrally or
separately. It can adopt servo motor driving. The filling volume is
adjusted on the man-machine interface.
-Filling is carried out when there is any bottle, and no filling is
carried out if there is no bottle.
-The mechanical manipulator cap taking and cap pressing achieves a
high pass rate.
-Unique function of sucking back filling liquid for small bottle
mouth products, bubble recovery, no leakage.
-The whole line adopts the PLC control system with variable
frequency speed control and high degree of automation.
-The mechanical hand cap grabbing and cap placing is stable and
reliable.
-The whole line is designed in accordance with GMP requirement.
Main Technical Parameters
| Product Model | KSL4/1 |
| Stable production capacity | 40-50 bottles/minute |
| Filling range | 5-30 ml |
| Applicable bottle type | Irregular-shaped plastic bottle |
| Number of filling heads | 4 heads |
| Filling accuracy | ≤±0.5% |
| Number of cap pressing heads | 1 head |
| Capping mode | Mechanical manipulator cap placing |
| Capping pass rate | ≥99.9% |
| Bottle moving mode | Round disc positioning type |
| Power supply | 220/380V 50/60HZ |
| Power | ≤1.2KW |
| Compressed air pressure | 0.4 - 0.6 MPa |
| Weight | 800 KG |
About us
-Listed company founded in 2003(WINLONG GROUP CORPORATE)
-17 years’ manufacturing experience in the aseptic filling
production line.
-Exclusive manufacturing factory of 20,000 square meters
(Changzhou, Jiangsu)
-More than 100 famous enterprise business partners across China.
-Expanded global business network
-Proven design, efficient and reliabile products.
-Customized design to meet the customer’s demand.
Our Services and Warranty
1.We can customize the machine as customer required.
2.Available for OEM/ODM service.
3.Offer living broadcast or video support.
4.To Door installation and training service.
5.Offer filling line solution with customer requirement.
6.Customer’s design are welcomed.
7.Competitive price with on-time delivery.
8.Main spare parts one year warranty ( personal damaged except ).
We can customize with your packaging materials, production capacity
and demands.
We will provide you with associated design solutions and case
videos.
