Product Description
Overview
Adopting an integral tunnerl sturcture, the machine automatically
completes the whole production process including bottle feeding,
preheating, drying, cooling nad bottle discharging. The laminar
flow principle and the hot air high-speed disinfection process are
used to dry the vessels in the Class A tunnel. It is an
internationally popular and effective drying device with uniform
heat distribution.
The machine can be used singly, and can also work with the previous
washing machine and the next unit for linked production.
Performance Features(Standard configuration)
- The dehumidifier displacement is increased: dehumidifier
displacement 100-300m³/h, discharge separately. It can effectively
extend the service life of teh exhaust fan and effectively
elimainate the high temperature moisture in the preheating section.
- The left and right wall frame is changed to integral stainless
steel welded frame.
- Exhaust fan side mounting.
The debris removal drawer is added at the heating section.
- Mesh belt online cleaning(Optional)
Technical Parameters
| Model | QHX620/3500 |
| Oral liquid bottle specifications | 5-20ml |
| Maximum production capacity(5ml) | 18000 pieces/hour |
| Conveyor belt width | 620mm |
| Tunnel air cleanliness | Installed power: 27Kw Electric heating power: 18kw |
| Power supply | 380V 50Hz |
| Noise | <75dB |
| Breakage rate | <0.01% |
| Bottle discharging temperature | <room temperature+15 degree |
| Efficiency of high tempertature resistant high efficiency filter | 99.97% |
| Partical test | Class A |
| Exhaust | According to wind speed of 0.55m/s ≈2300m³/h ±20% |
| Weight | 3300kg |

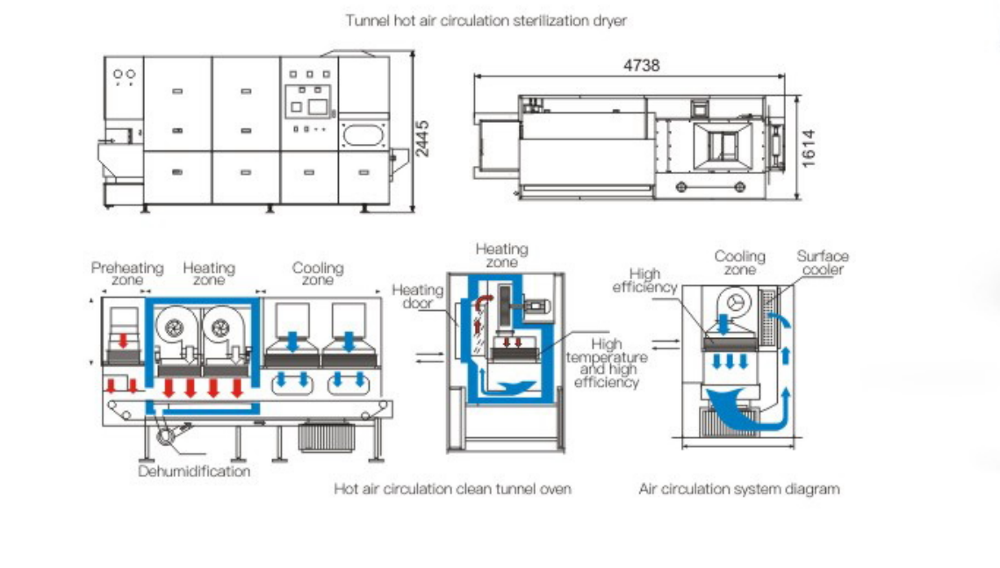

Working Principle Area
Our Partner
Our service and warrantee
1.We can customize the machine as customer requried ;
2.Available for OEM/ODM service ;
3.Offer living broadcast or video support;
4.To Door installation and training service ;
5. Offer filling line solution with customer required
6.Customer’s design are welcomed.
We can customize with your packaging materials, production capacity
and demands. We will provide you with associated design solutions and case
videos.
