Overview
The machine is suitable for bottle unscrambling of round,flat and
oval size bottles in the field of pharmaceutical,
pesticide,chemical etc. It is able to orient the bottle in line
erectly to the next working procedure. easy linking in line. The
equipment has beautiful figure, advanced design, novel structure.
Stably running , low noise, easy operation and cleaning.
Main features
-The equipment consist of unscrambler and cap loading hopper.
-Constructed of 304 stainless steel, and shrouded aluminum
components.
-Includes change parts(PVC texture Sorting Disc) for dedicated
bottle size.
-Variable speed drives, higheffective of bottle orientign,easy
adjustable for various ottle size.
-Photoelectric controls for automatic operation including conveyor
accumulation control.
-The whole machine meets the GMP requirement.
Main Technical Parameters
Model: | XHL-LP50/500 | Applicable bottle type: | round, flat, square. |
Applicable plastic bottle size: | bottle body: 40-90mmbottle height: 100-300mm | LP50/1000 | suitable for 50-1000ml bottles |
LP50/500 | suitable for 50-500ml bottles | Bottle orienting speed: | 3000-7200 bottles/hour |
Bottle orienting pass rate: | ≥99% | Compressed air pressure: | 0.4-0. 6MPa |
Air consumption: | 0.5m3/h | Power supply: | 220V 50Hz |
Power consumption: | 0.8kw | Net weight: | 600kg |

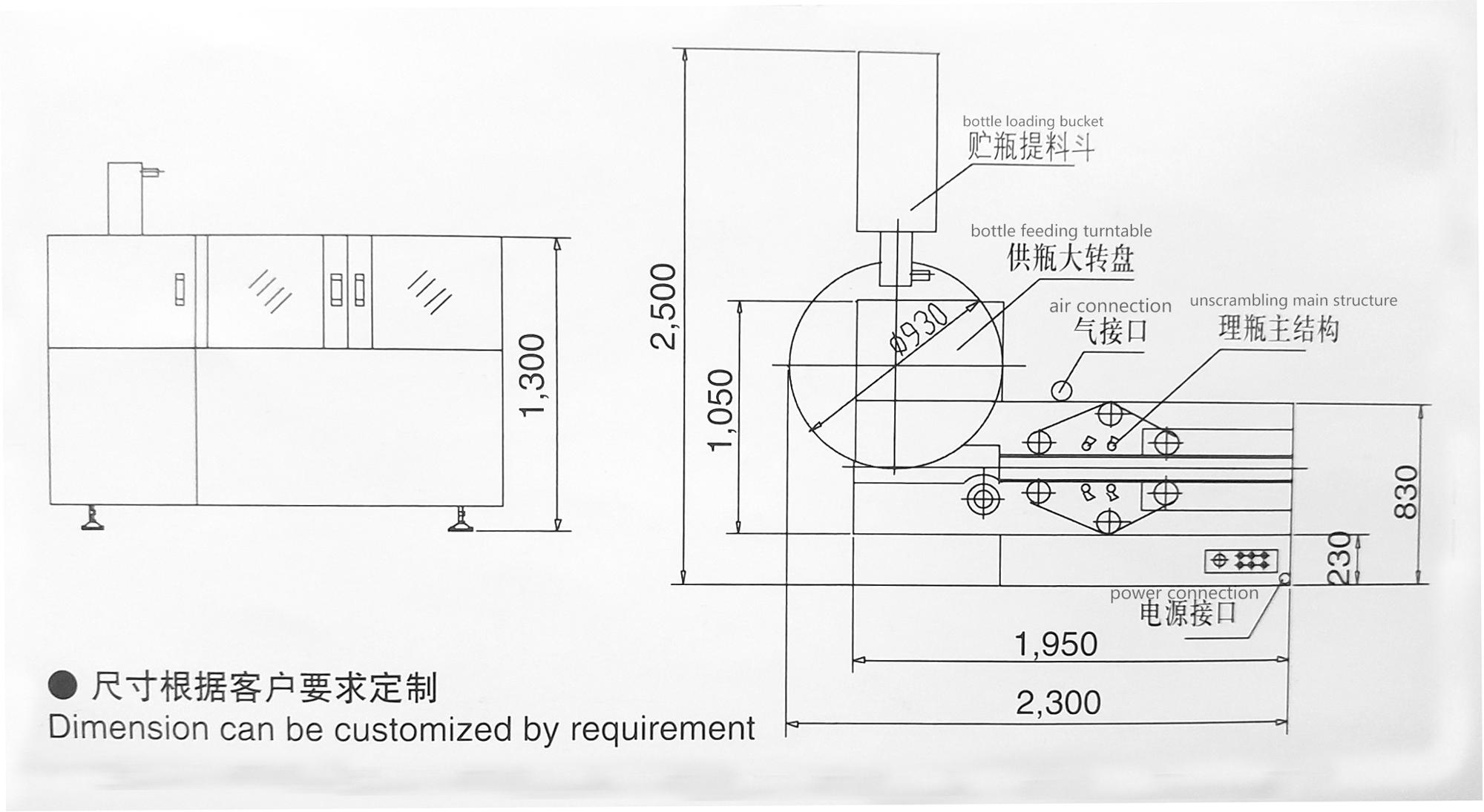

Outline dimensions (mm): | 1980 x 1400 x 1300(mm) |
About us
-Listed company founded in 2003(WINLONG GROUP CORPORATE)
-17 years’ manufacturing experience in the aseptic filling
production line.
-Exclusive manufacturing factory of 20,000 square meters
(Changzhou, Jiangsu)
-More than 100 famous enterprise business partners across China.
-Expanded global business network
-Proven design, efficient and reliabile products.
-Customized design to meet the customer’s demand.
Our Services and Warranty
1.We can customize the machine as customer required.
2.Available for OEM/ODM service.
3.Offer living broadcast or video support.
4.To Door installation and training service.
5.Offer filling line solution with customer requirement.
6.Customer’s design are welcomed.
7.Competitive price with on-time delivery.
8.Main spare parts one year warranty ( personal damaged except ).
We can customize with your packaging materials, production capacity
and demands.
We will provide you with associated design solutions and case
videos.
