Company Profile
Founded in 2003, Jiangsu Winlong Pharmaceutical Machinery Co., Ltd.
(stock code:836556), formerly known as Jiangsu Winlong Filling
Machinery Co.( Ltd., is located in Jintan District, Changzhou City,
Yangtze River Delta Economic Development Zone. Mainly engaged in
providing overall solutions for smart workshops in pharmaceutical,
biological, health product and daily chemical industries and
manufacturing, selling, importing and exporting other packaging
machinery products, it is a high-tech enterprise and a member unit
of China Association for Pharmaceutical Equipment.
Focusing on health and keeping faith. Standing at the new
historical starting point and facing new development opportunities,
Winlong will continue to advance with the times, face up to
difficulties and challenges with confidence, innovation and
struggling efforts, promote the transformation of pharmaceutical
equipment from "Made in China" to "Intelligent Manufacturing in
China” and strive for the cause of human health and for great
achievements of China’s pharmaceutical equipment industry.
Our Factory
Our Warehouse
Why choose us?
1. 17 years manufacture in filling line and machine2. 2 years alibaba supplier
3. 100% QC inspection before shipment
4. 12 months warranty
5. Product Certificated by CE, ISO

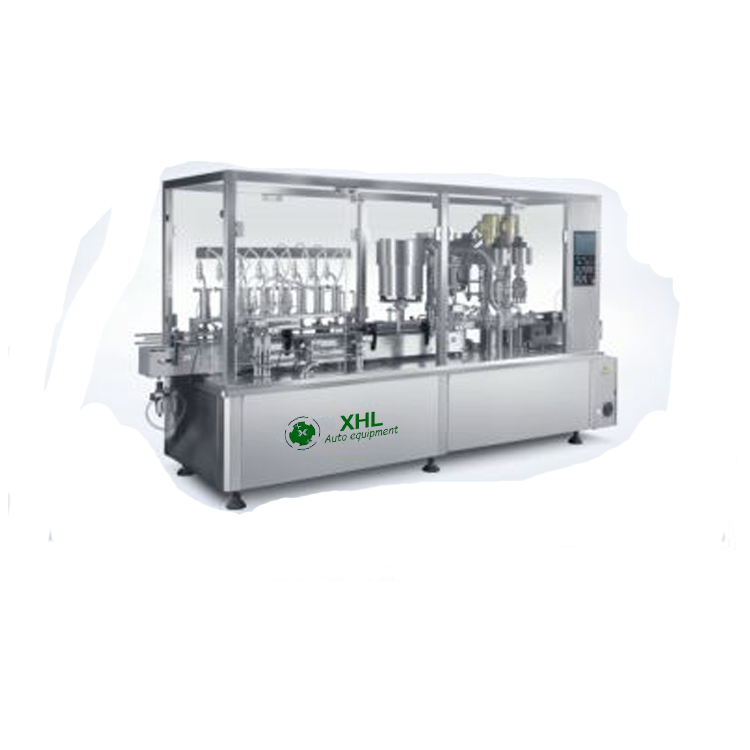

Overview of production line
The production line is mainly suitable for production of large
volume injection.
This production line is composed of SSP bottle feeding machine,
GZXP series bottle washing machine, QHX serieshot air circulation
tunnel oven, YGS series liquid filling machine, HYS series cap
pressing machine and XG series capping machine. The unit has the
functions of washing,drying and sterilizing, fillil and stoppling
(half stoppling and full stoppling), capping and sealing. It is
mainly suitablefor production of large volume injection in
pharmaceuticalenterprises. By adding the RABS system, it can meet
Class A (ISO5 level) requirements for aseptic preparation
environment, and the unit meets the new version GMP requirements.
It is also suitable for production of similar packaging materials
such as bioengineering products oral plastic bottles.
Performance features
1. The SSP widened mesh belt conveying type bottle feeding system
saves manpower and enables the storage of a large numberof bottles.
2. The GZXP bottle washing machine combines ultrasonic washing and
pressure jetting washing with air and water separablefrom each
other. The washed vials meet the new version GMP requirements for
visible foreign objects.
3. The QHX hot air circulation sterilization tunnel oven adopts
full laminar flow (resistant to high temperature 350C) and hot
airhigh temperature drying and sterilization processes, so as to
make the vial run in the tunnel according to the Class A (ISO5
level)requirements. With such features as low energy consumption,
high temperature evenness and good heat source removing effect,it
is a drying sterilizer with high international and domestic
popularity and high applicability.
4. The YGS series filling machine adopts servo control driving.
With adjustable fillig volume on the man-machine interface,
low-position stoppling and other technologies, it ensures stable
operation of equipment and high conforming rate of
finishedproducts.
5. Integrating filling stoppling and capping and taking small floor
space, it is suitable for equipment upgrading in old plants.
The circumferential swing mechanism is adopted for stoppling and
capping, with such features as stable and reliableoperation, high
efficiency, easy-to-maintain structure and smart design.
The filling principle includes the use of peristaltic pump,
negative pressure type, weighing type, self-flow type,
refluxdefoaming type, ceramic pump plunger type, etc.
6. It can be equipped with CIP/SIP cleaning and sterilization
system.
7. It adopts the PLC control system with variable frequency speed
control and high degree of automation.
8. The filling system is provided with the anti-leaking device,
realizing filling from the bottom of the bottle, rising slowly
andavoiding bubbles.
9. The capping head adopts three knives for sealing. The blade is
subject to quenching treatment with good durability. The sealsand
threads are beautiful and uniform. The capping head adopts flexible
design with easy adjustment, and can also be designedto be used for
pull caps.
10. Explosion-proof design can be adopted for products used in
special industries or special types of products. After
speciallydesigned, it can also be used for filig and cap turning
(capping) of slim and easy-to-fall bottles.
The whole machine is designed according to GMP requirements.
Main Technical Parameters
| Filling machine model(can be used with other equipment) | DYG4/1/1 | DYG8/2/2 | DYG12/8/8 | DYG24/12/12 | DYG36/18/18 |
| Stable production capacity(100ml) | 45BPM | 80BPM | 120BPM | 200BPM | 300BPM |
| Bottle moving mode | Linear type | Linear or rotary tyep | Rotary type |
| Number of filling heads | 4 | 8 | 12 | 24 | 36 |
| Number of stoppling heads | 1 | 2 | 8 | 12 | 18 |
| Number of capping heads | 1 | 2 | 8 | 12 | 18 |

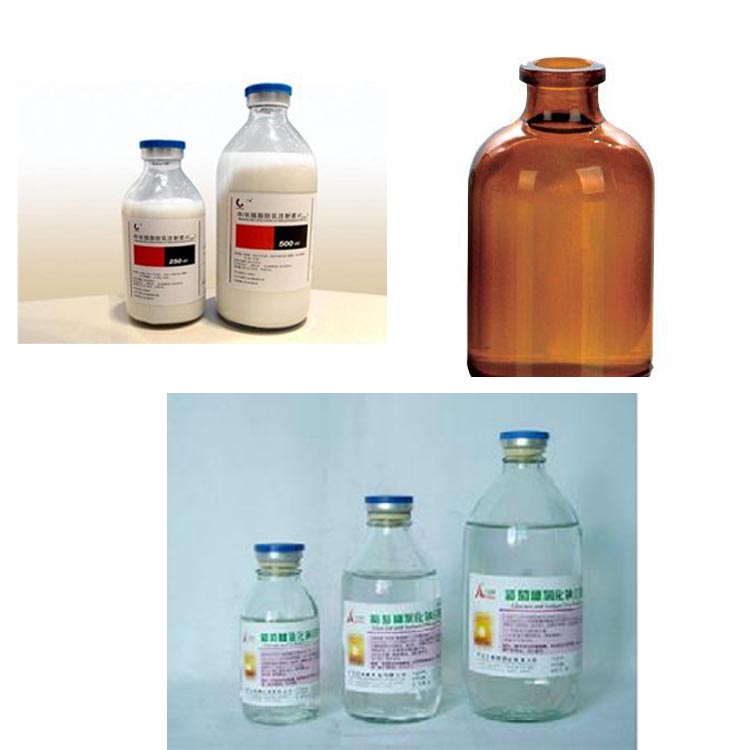

| Filling range | 35-500ml large volume injection bottle or plastic bottle |
| Filling accuracy | ≤±0.5% |
| Stoppling pass rate | ≥99.9% |
| Capping pass rate | ≥99.9% |
| Power supply | 220/380V 50/60Hz |
| Power | ≤6Kw |
| Air pressure | 0.4-0.6MPa |
Our Partner
Our service and warrantee
1.We can customize the machine as customer requried ;
2.Available for OEM/ODM service ;
3.Offer living broadcast or video support;
4.To Door installation and training service ;
5. Offer filling line solution with customer required
6.Customer’s design are welcomed.
We can customize with your packaging materials, production capacity
and demands.
We will provide you with associated design solutions and case
videos.
