Overview

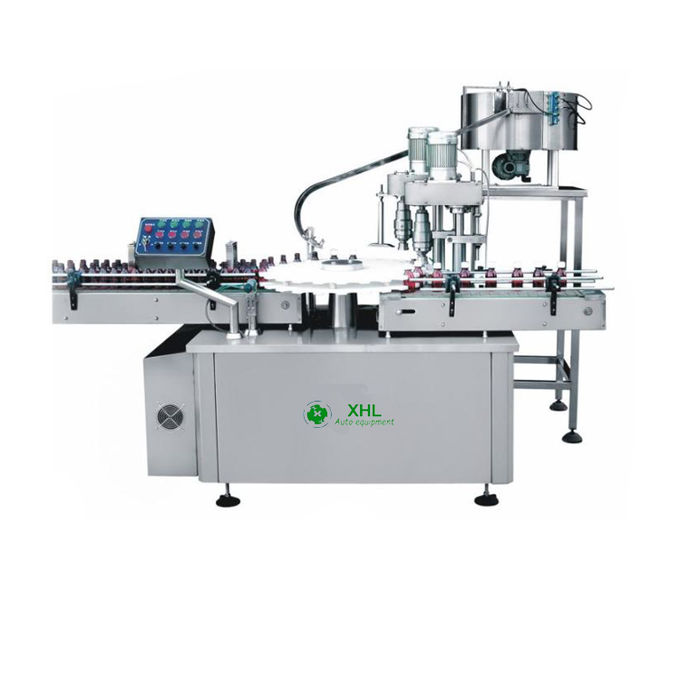

The XG round disc positioning type cap turning(capping) machine is an economical device. The machine is designed to ues the round dics for positioning the bottles for intermittent movement. The positioned bottles are subject to cap turning (capping) by the cap turning (capping) heads. The machine is highly practical and is an ideal piece of equipment for cap turning of bottles in such industries as medicine, food, chemical industry, pesticide, etc.

Features

- Automatic cap unscrambling with high capping rate and cap turning rate.

-Positioning by the round disc, easy change of specifications and wide adjustment range.

- Smooth bottle feeding and discharging, variablefrequency speed control, easy to be connected for linked production.

- The tightness of the air gripper type cap turning headcan be adjusted without damaging the bottle and cap.

- The capping head adopts flexible design with easy adjustment, and can also be designed to be used for pull caps.

- Continuous operation to complete automatic production,saving time and improving efficiency.

- The cap turning machine can be equipped with a servomotor, and the torque is adjustable.

- It can be equipped with the cap storage and lifting mechanism.

- It can be equipped with the mechanism for identifying reverse caps and eliminating nonconforming products.

- Replacement of parts is simple and easy to operate.

- The whole machine is designed according to GMP requirements.

Our service and warranty

1.We can customize the machine as customer requried ;
2.Available for OEM/ODM service ;
3.Offer living broadcast or video support;
4.To Door installation and training serive ;
5. Offer filling line solution with customer required
6.Customer’s design are welcomed.

Main Technical parameters

Product model XG/1 XG/2
Applicable bottle specification 20-500ml
Optional screw cap size F12-70mm
Single machine noise <=70dB
Applicable bottle type flat, round, square
Number of cap turning heads single-head double-head


cap turning pass rate >=99%
Power 0.8kw 1.2kw
Outline Size 2000*1000*1500mm 2000*1000*1500mm
weight 600kg 700kg
cap turning and pressing speed(bottle F40mm) 2400-3000 bottle/hour 3000-5000 bottle hour
